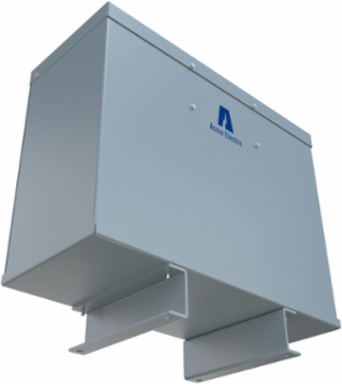

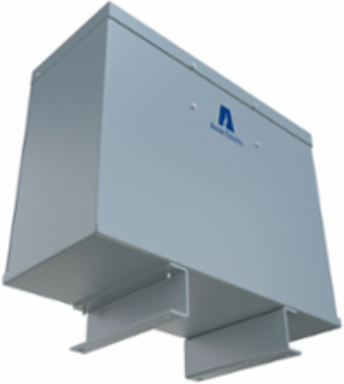

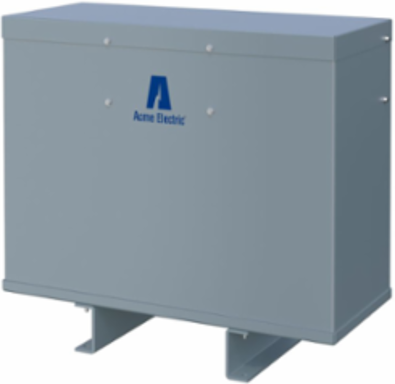

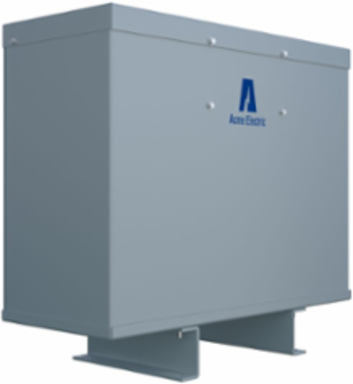

Acme Electric T3793133S Low Voltage Distribution Transformer, 45kVA, 480V Primary, 208Y/120V Secondary, Floor Mount
- MPN: T3793133S
- UPC: 047503183021
- PPN: HBL-T3793133S
- UNSPSC: 39121027
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Low Voltage Distribution Transformer - Three Phase, 480Δ - 208Y/120V, 45kVA, Encapsulated
Features
- Quiet operation with sound levels below NEMA standards
- Electrostatic shield for enhanced protection
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- BNFC Taps
- 4
- Dimensions
- 12.76 in x 30.18 in x 25.31 in
- Max Temperature Rise
- 115 Degrees Celsius
- Product Category
- Dry Type Distribution Transformer
- Secondary Voltage
- 208Y/120 V
- Frequency Rating
- 60 Hz
- Length
- 12.76 in
- Width
- 30.18 in
- UL Standard
- UL 506
- Material type
- ZFIN
- Nema Rating
- NEMA 3R
- Class Code
- D10
- Harmonization Code
- 8504330020
- Stock Indicator
- N - Non-stock
- Electrostatic Shield
- Shielded
- Construction
- Encapsulated
- BOX SIZE
- 32.000x18.000x37.000 (in)
- Pallet Height
- 32.000 in
- Pallet Weight
- 808.000 lb.
- NAICS Code
- 335311
ANFC Taps2
CSA StandardC22.2 No. 47
kVA45.0
Primary Voltage480D V
Product TypeDry Type Distribution Transformer
Taps % Steps2.5%
Height25.31 in
MountingFloor
UL Insulation Class180°C
Weight780 lb.
Mounting TypeFloor
ARRA CompliantContact Manufacturer
Freight Class Code06342001
Image Actual Or RepresentativeA
Sub Class CodeD10D100
Winding MaterialAL
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00047503183021
Pallet Length18.000 in
Pallet Width37.000 in
Certifications
- Buy American Compliant
- Contact Manufacturer
