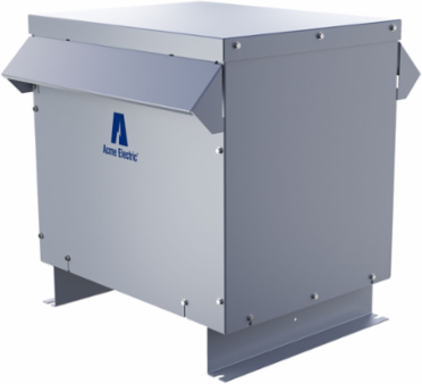

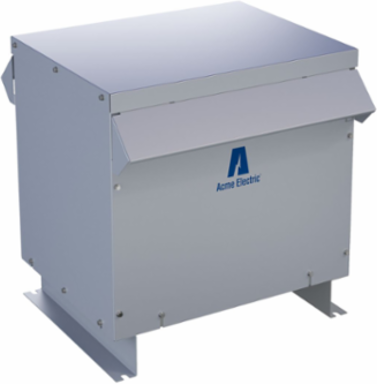

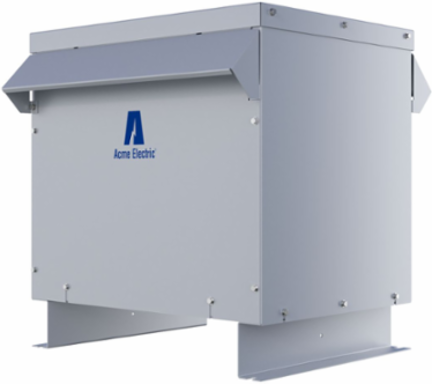

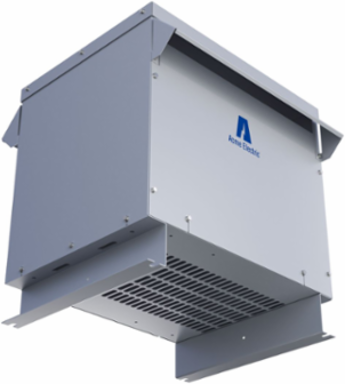

Acme Electric T3015K0013BSF Low Voltage Transformer 15kVA, 480V to 208Y/120V, Shielded, 290 lb.
- MPN: T3015K0013BSF
- UPC: 047503093733
- PPN: HBL-T3015K0013BSF
- UNSPSC: 39121001
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Low Voltage Distribution Transformer - Three Phase, 480Δ - 208Y/120V, 15kVA, 115°C Rise, Shielded
Features
- Quiet operation with sound levels below NEMA standards
- Electrostatic shield for enhanced protection
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- BNFC Taps
- 4
- Dept of Energy Regulation
- Meets or exceed U.S. DOE 10 CFR Part 431
- kVA
- 15.0
- Product Category
- Dry Type Distribution Transformer
- Secondary Voltage
- 208Y/120 V
- Efficiency
- 97.89%
- Height
- 25.5 in
- Mounting
- Floor
- Width
- 24.39 in
- UL Standard
- UL 1561
- Material type
- ZFIN
- Nema Rating
- NEMA 3R
- Class Code
- D10
- Harmonization Code
- 8504320000
- Sub Class Code
- D10D100
- Winding Material
- AL
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00047503093733
ANFC Taps2
CSA StandardC22.2 No. 47
Dimensions19.37 in x 24.39 in x 25.5 in
Max Temperature Rise115 Degrees Celsius
Product TypeDry Type Distribution Transformer
Taps % Steps2.5%
Frequency Rating60 Hz
Length19.37 in
Primary Voltage480D V
UL Insulation Class180°C
Weight290 lb.
Mounting TypeFloor
ARRA CompliantContact Manufacturer
Freight Class Code06342001
Image Actual Or RepresentativeA
Electrostatic ShieldShielded
ConstructionVentilated
BOX SIZE(in)
NAICS Code335311
