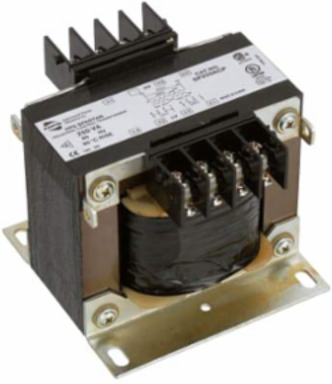

Hammond Power Solutions SP50MQMJ Spartan Open Core & Coil Control Transformer 50VA 240x480V→120x240V 50/60Hz
- MPN: SP50MQMJ
- UPC: 803423098759
- PPN: HPS-SP50MQMJ
CAD
$51.05
/ EA
Available to Order from Manufacturer
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
HPS Spartan industrial open core-and-coil control transformer. Rated 50 VA. Primary voltage 240x480, 230x460, 220x440 V; secondary voltage 120x240, 115x230, 110x220 V; 50/60 Hz. Output current 0.42/0.21 A. Approximate shipping weight 1.7 lb.
Features
- Open core-and-coil construction for industrial control circuits
- High inrush capacity for solenoid and contactor loads
Documentation & Downloads
Specifications
Additional
| VA Rating | 50 VA |
|---|---|
| Primary Voltage | 240 x 480 V |
| Overall Dimensions | 2.60 x 3.35 x 2.60 in |
| Mounting Slot | 0.22 x 0.44 in |
| Height with Fuse Block Adapter | 2.79 in |
| Insulation System | 806C rise, 1306C temperature class (B) for up to 1500 VA |
| Frequency | 50/60 Hz |
|---|---|
| Secondary Voltage | 120 x 240 V |
| Mounting Centers | 2.13 x 2.17 in |
| Height with Finger Guard | 2.98 in |
| Material | Copper Wound Coils |
| Compliance | CSA Certified, UL Listed, CE Marked, RoHS Compliant |
