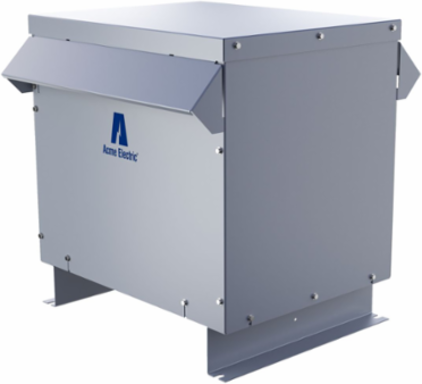

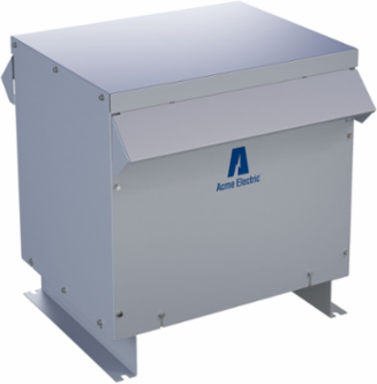

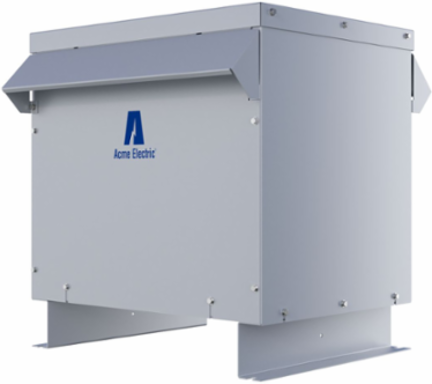

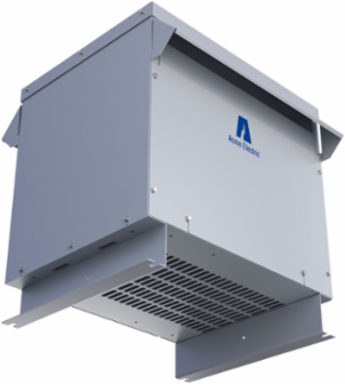

Acme Electric T3015K0013BSB Low Voltage Distribution Transformer 15kVA, 480V/208Y-120V, Shielded
Acme Electric T3015K0013BSB Low Voltage Distribution Transformer 15kVA, 480V/208Y-120V, Shielded
- MPN: T3015K0013BSB
- UPC: 047503093719
- PPN: HBL-T3015K0013BSB
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Low Voltage Distribution Transformer - Three Phase, 480Δ - 208Y/120V, 15kVA, 80°C, Shielded
Features
- Quiet operation with sound levels below NEMA standards
- Electrostatic shield for enhanced protection
Specifications
Specifications
- ANFC Taps
- 2
- Country of Origin
- MX
- Dept of Energy Regulation
- Meets or exceed U.S. DOE 10 CFR Part 431
- Each - Width
- 24.39 in
- kVA
- 15.0
- Max Temperature Rise
- 80 Degrees Celsius
- Product Category
- Dry Type Distribution Transformer
- Secondary Voltage
- 208Y/120 V
- UL Insulation Class
- 180°C
- Weight
- 290 lb.
- Efficiency
- 97.89%
- Material type
- ZFIN
- Nema Rating
- NEMA 3R
- Class Code
- D10
- Harmonization Code
- 8504320000
- Sub Class Code
- D10D100
- Winding Material
- AL
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00047503093719
- Pallet Length
- 38.000 in
- Pallet Width
- 38.000 in
BNFC Taps4
CSA StandardC22.2 No. 47
Dimensions19.37 in x 24.39 in x 25.5 in
Height25.5 in
Length19.37 in
Primary Voltage480D V
Product TypeDry Type Distribution Transformer
Taps % Steps2.5%
UL StandardUL 1561
Width24.39 in
Frequency Rating60 Hz
Mounting TypeFloor
ARRA CompliantContact Manufacturer
Freight Class Code06342001
Image Actual Or RepresentativeA
Electrostatic ShieldShielded
ConstructionVentilated
BOX SIZE37.000x38.000x35.000 (in)
Pallet Height37.000 in
Pallet Weight347.000 lb.
