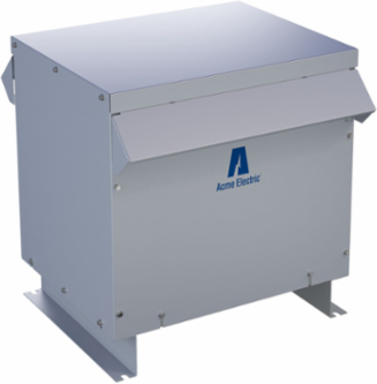

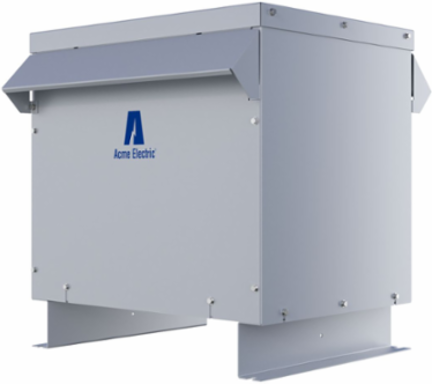

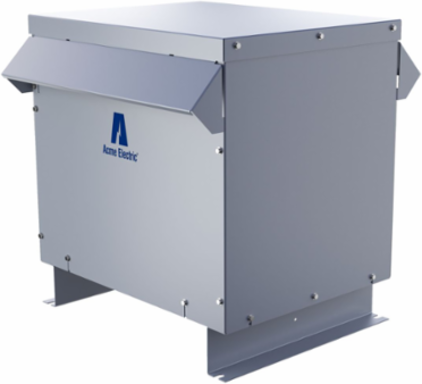

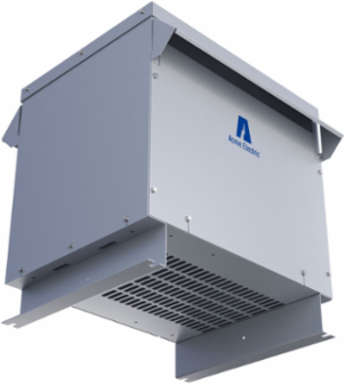

Acme Electric T3015K0013BC Low Voltage Distribution Transformer 15kVA, 480V, 208Y/120V, Copper Windings
Acme Electric T3015K0013BC Low Voltage Distribution Transformer 15kVA, 480V, 208Y/120V, Copper Windings
- MPN: T3015K0013BC
- UPC: 047503093689
- PPN: HBL-T3015K0013BC
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Low Voltage Distribution Transformer - Three Phase, 480Δ - 208Y/120V, 15kVA, Copper Windings
Features
- Quiet operation with sound levels below NEMA standards
Specifications
Specifications
- Country of Origin
- Mexico
- BNFC Taps
- 4
- Dept of Energy Regulation
- Meets or exceed U.S. DOE 10 CFR Part 431
- Height
- 25.5 in
- Length
- 19.37 in
- Primary Voltage
- 480D V
- Product Type
- Dry Type Distribution Transformer
- Taps % Steps
- 2.5%
- UL Standard
- UL 1561
- Width
- 24.39 in
- Frequency Rating
- 60 Hz
- Mounting Type
- Floor
- ARRA Compliant
- Contact Manufacturer
- Freight Class Code
- 06342001
- Image Actual Or Representative
- A
- Winding Material
- CU
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00047503093689
- Pallet Length
- 38.000 in
- Pallet Width
- 38.000 in
ANFC Taps2
CSA StandardC22.2 No. 47
Dimensions19.37 in x 24.39 in x 25.5 in
kVA15.0
Max Temperature Rise150 Degrees Celsius
Product CategoryDry Type Distribution Transformer
Secondary Voltage208Y/120 V
UL Insulation Class220°C
Weight290 lb.
Efficiency97.89%
Material typeZFIN
Nema RatingNEMA 3R
Class CodeD10
Harmonization Code8504320000
Sub Class CodeD10D100
ConstructionVentilated
BOX SIZE37.000x38.000x38.000 (in)
Pallet Height37.000 in
Pallet Weight290.000 lb.
