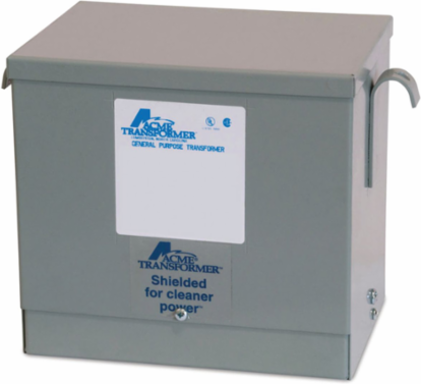

Acme Electric T2A53309SS Low Voltage Distribution Transformer 6kVA, 480V, 208Y/120V, Stainless Steel
Acme Electric T2A53309SS Low Voltage Distribution Transformer 6kVA, 480V, 208Y/120V, Stainless Steel
- MPN: T2A53309SS
- UPC: 047503130636
- PPN: HBL-T2A53309SS
- UNSPSC: 39121027
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Low Voltage Distribution Transformer - Three Phase, 480Δ - 208Y/120V, 6kVA, 316 Stainless Steel
Features
- Quiet operation with sound levels below NEMA standards
- Electrostatic shield for enhanced protection
Specifications
Specifications
- BNFC Taps
- 2
- Country of Origin
- MX
- Dimensions
- 8.82 in x 14.17 in x 11.83 in
- kVA
- 6.0
- Primary Voltage
- 480D V
- Product Type
- Dry Type Distribution Transformer
- Taps % Steps
- 5.0%
- Height
- 11.83 in
- Mounting
- Wall
- UL Insulation Class
- 180°C
- Weight
- 140 lb.
- Mounting Type
- Wall
- ARRA Compliant
- Contact Manufacturer
- Freight Class Code
- 06342001
- Image Actual Or Representative
- R
- Sub Class Code
- D10D100
- Winding Material
- AL
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00047503130636
- Pallet Length
- 40.000 in
- Pallet Width
- 40.000 in
Buy American CompliantContact Manufacturer
CSA StandardC22.2 No. 47
Each - Width14.17 in
Max Temperature Rise115 Degrees Celsius
Product CategoryDry Type Distribution Transformer
Secondary Voltage208Y/120 V
Frequency Rating60 Hz
Length8.82 in
Width14.17 in
UL StandardUL 506
Material typeZFIN
Nema RatingNEMA 3R
Class CodeD10
Harmonization Code8504320000
Stock IndicatorS - Shelf Stock
Electrostatic ShieldShielded
ConstructionEncapsulated
BOX SIZE15.000x12.000x15.000 (in)
Pallet Height20.000 in
Pallet Weight698.000 lb.
