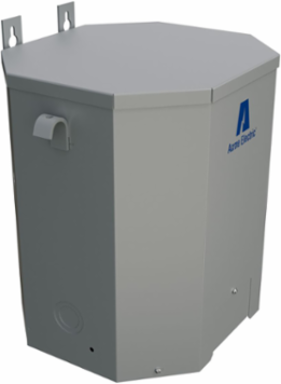

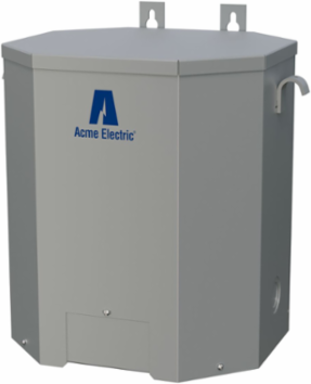

Acme Electric TC533111S Low Voltage Distribution Transformer 15kVA, 480V, 208Y/120V, Copper Windings
- MPN: TC533111S
- UPC: 047503533116
- PPN: HBL-TC533111S
- UNSPSC: 39121001
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Low Voltage Distribution Transformer - Three Phase, 480Δ - 208Y/120V, 15kVA, Copper Windings
Features
- Quiet operation with sound levels below NEMA standards
- Electrostatic shield for enhanced protection
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- CSA Standard
- C22.2 No. 47
- kVA
- 15.0
- Product Category
- Dry Type Distribution Transformer
- Secondary Voltage
- 208Y/120 V
- Frequency Rating
- 60 Hz
- Length
- 9 in
- Primary Voltage
- 480D V
- UL Insulation Class
- 180°C
- Weight
- 245 lb.
- Mounting Type
- Floor
- ARRA Compliant
- Contact Manufacturer
- Freight Class Code
- 06342001
- Image Actual Or Representative
- A
- Sub Class Code
- D10D100
- Winding Material
- CU
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00047503533116
- Pallet Length
- 40.000 in
- Pallet Width
- 40.000 in
BNFC Taps2
Dimensions9 in x 20.3 in x 18.9 in
Max Temperature Rise115 Degrees Celsius
Product TypeDry Type Distribution Transformer
Taps % Steps5.0%
Height18.9 in
MountingFloor
Width20.3 in
UL StandardUL 506
Material typeZFIN
Nema RatingNEMA 3R
Class CodeD10
Harmonization Code8504320000
Stock IndicatorN - Non-stock
Electrostatic ShieldShielded
ConstructionEncapsulated
BOX SIZE24.000x13.000x24.000 (in)
Pallet Height28.000 in
Pallet Weight1043.000 lb.
NAICS Code335311
Certifications
- Buy American Compliant
- Contact Manufacturer
