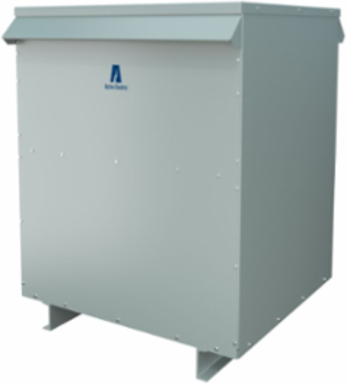

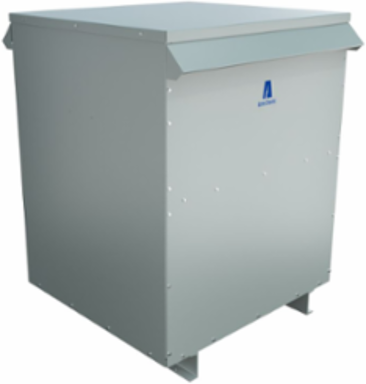

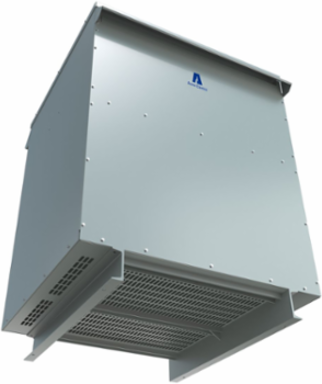

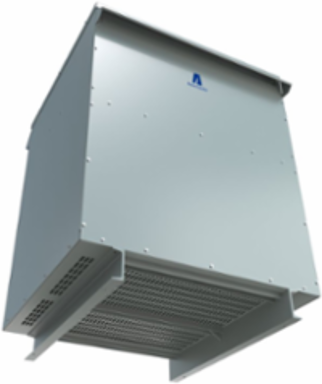

Acme Electric T3500K0013BC Low Voltage Distribution Transformer 500kVA 480D/208Y-120V Copper Windings
- MPN: T3500K0013BC
- UPC: 047503093603
- PPN: HBL-T3500K0013BC
- UNSPSC: 39121001
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Low Voltage Distribution Transformer - Three Phase, 480Δ - 208Y/120V, 500kVA, Copper Windings
Features
- Quiet operation with sound levels below NEMA standards
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| BNFC Taps | 4 |
| Dept of Energy Regulation | Meets or exceed U.S. DOE 10 CFR Part 431 |
| kVA | 500.0 |
| Product Category | Dry Type Distribution Transformer |
| Secondary Voltage | 208Y/120 V |
| Efficiency | 99.14% |
| Height | 57.8 in |
| Mounting | Floor |
| Width | 45.6 in |
| UL Standard | UL 1561 |
| Material type | ZFIN |
| Nema Rating | NEMA 3R |
| Class Code | D10 |
| Harmonization Code | 8504330040 |
| Sub Class Code | D10D100 |
| Construction | Ventilated |
| BOX SIZE | (in) |
| NAICS Code | 335311 |
| ANFC Taps | 2 |
|---|---|
| CSA Standard | C22.2 No. 47 |
| Dimensions | 41.5 in x 45.6 in x 57.8 in |
| Max Temperature Rise | 150 Degrees Celsius |
| Product Type | Dry Type Distribution Transformer |
| Taps % Steps | 2.5% |
| Frequency Rating | 60 Hz |
| Length | 41.5 in |
| Primary Voltage | 480D V |
| UL Insulation Class | 220°C |
| Weight | 2819 lb. |
| Mounting Type | Floor |
| ARRA Compliant | Contact Manufacturer |
| Freight Class Code | 06342001 |
| Image Actual Or Representative | A |
| Winding Material | CU |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00047503093603 |
