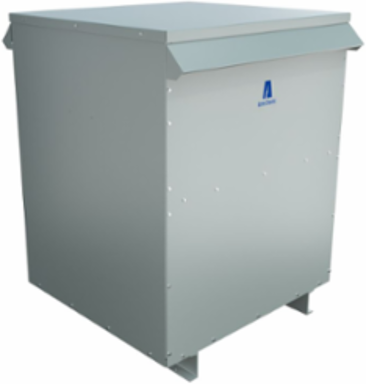

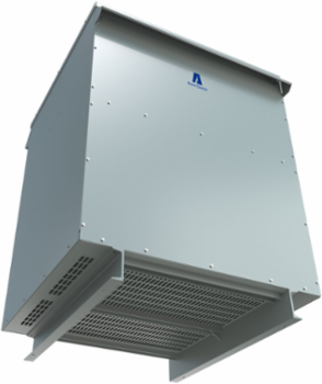

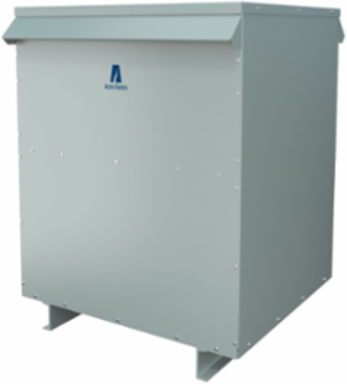

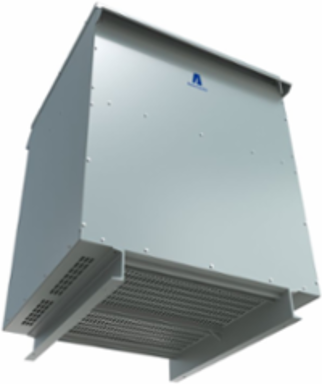

Acme Electric T335000153S Low Voltage Distribution Transformer 15kVA 480Y/277V 9.03 Inch x 20.3 Inch x 18.86 Inch
- MPN: T335000153S
- UPC: 047503731680
- PPN: HBL-T335000153S
- UNSPSC: 39121001
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Low Voltage Distribution Transformer - Three Phase, 480Δ - 480Y/277V, 15kVA
Features
- Quiet operation with sound levels below NEMA standards
- Electrostatic shield for enhanced protection
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- BNFC Taps
- 4
- Dimensions
- 9.03 in x 20.3 in x 18.86 in
- Max Temperature Rise
- 115 Degrees Celsius
- Product Type
- Dry Type Distribution Transformer
- Taps % Steps
- 2.5%
- Height
- 18.86 in
- Mounting
- Floor
- Width
- 20.3 in
- UL Standard
- UL 506
- Material type
- ZFIN
- Nema Rating
- NEMA 3R
- Class Code
- D10
- Harmonization Code
- 8504320000
- Stock Indicator
- S - Shelf Stock
- Electrostatic Shield
- Shielded
- Construction
- Encapsulated
- BOX SIZE
- 24.000x3.000x10.000 (in)
- Pallet Height
- 29.000 in
- Pallet Weight
- 1172.000 lb.
- NAICS Code
- 335311
ANFC Taps2
CSA StandardC22.2 No. 47
kVA15.0
Product CategoryDry Type Distribution Transformer
Secondary Voltage480Y/277 V
Frequency Rating60 Hz
Length9.03 in
Primary Voltage480D V
UL Insulation Class180°C
Weight250 lb.
Mounting TypeFloor
ARRA CompliantContact Manufacturer
Freight Class Code06342001
Image Actual Or RepresentativeA
Sub Class CodeD10D100
Winding MaterialAL
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00047503731680
Pallet Length48.000 in
Pallet Width42.000 in
Certifications
- Buy American Compliant
- Contact Manufacturer
