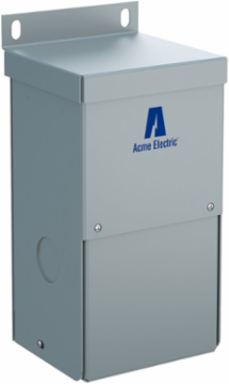

Acme Electric T153006 Low Voltage Distribution Transformer 240X480V 0.15kVA 7 lb. 3.67 x 3.89 x 7.16 Inch
- MPN: T153006
- UPC: 047503085387
- PPN: HBL-T153006
- UNSPSC: 39121001
CAD
$288.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Low Voltage Distribution Transformer - Single Phase, 240X480 - 120/240V, 0.15kVA
Features
- Quiet operation with sound levels below NEMA standards
- Electrostatic shield for enhanced protection
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Dimensions
- 3.67 in x 3.89 in x 7.16 in
- Max Temperature Rise
- 115 Degrees Celsius
- Product Type
- Dry Type Distribution Transformer
- Frequency Rating
- 50/60 Hz
- Length
- 3.67 in
- Primary Voltage
- 240 X 480 V
- UL Insulation Class
- 130°C
- Weight
- 7 lb.
- Mounting Type
- Wall
- ARRA Compliant
- Contact Manufacturer
- Freight Class Code
- 06342001
- Image Actual Or Representative
- A
- Sub Class Code
- D10D100
- Construction
- Encapsulated
- BOX SIZE
- 6.000x14.000x10.000 (in)
- Pallet Height
- 32.000 in
- Pallet Weight
- 1413.000 lb.
- NAICS Code
- 335311
CSA StandardC22.2 No. 47
kVA0.1
Product CategoryDry Type Distribution Transformer
Secondary Voltage120/240 V
Height7.16 in
MountingWall
Width3.89 in
UL StandardUL 506
Material typeZFIN
Nema RatingNEMA 3R
Class CodeD10
Harmonization Code8504314065
Stock IndicatorS - Shelf Stock
Winding MaterialCU
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00047503085387
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- Buy American Compliant
- Contact Manufacturer
