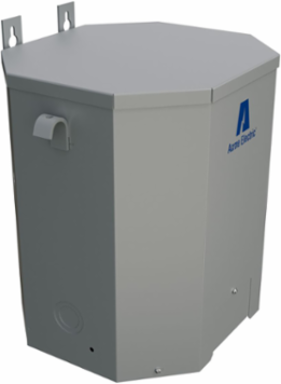

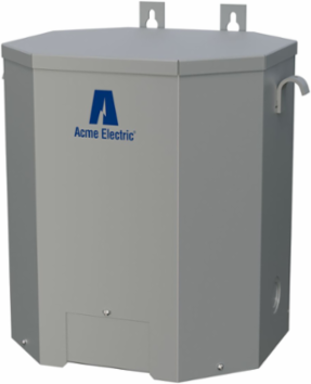

Acme Electric T279748S Low Voltage Distribution Transformer 25kVA 120/240V NEMA 3R 16.13 Inch Width

MPN: T279748S
UPC: 047503102169
PPN: HBL-T279748S
UNSPSC: 39121001

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Low Voltage Distribution Transformer - Single Phase, 120/208/240/277 - 120/240V, 25kVA

Features

Quiet operation with sound levels below NEMA standards
Electrostatic shield for enhanced protection

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico
Dimensions	13.34 in x 16.13 in x 18.44 in
Max Temperature Rise	115 Degrees Celsius
Product Type	Dry Type Distribution Transformer
Frequency Rating	60 Hz
Length	13.34 in
Primary Voltage	120/208/240/277 V
UL Insulation Class	180°C
Weight	261 lb.
Mounting Type	Wall
ARRA Compliant	Contact Manufacturer
Freight Class Code	06342001
Image Actual Or Representative	A
Sub Class Code	D10D100
Winding Material	AL
Base Unit of Measure	EA
Carton - SCC-14 Next Lower Level Sub Pack	00047503102169
Pallet Length	40.000 in
Pallet Width	40.000 in

CSA Standard	C22.2 No. 47
kVA	25.0
Product Category	Dry Type Distribution Transformer
Secondary Voltage	120/240 V
Height	18.44 in
Mounting	Wall
Width	16.13 in
UL Standard	UL 506
Material type	ZFIN
Nema Rating	NEMA 3R
Class Code	D10
Harmonization Code	8504330020
Stock Indicator	S - Shelf Stock
Electrostatic Shield	Shielded
Construction	Encapsulated
BOX SIZE	21.000x15.000x16.000 (in)
Pallet Height	23.000 in
Pallet Weight	1053.000 lb.
NAICS Code	335311
