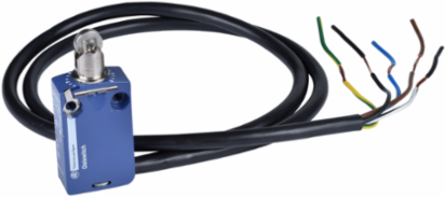

Telemecanique Sensors XCMD2102L7 Limit switch XCMD, steel roller plunger, 1NC+1NO, snap action, 7 m cable

MPN: XCMD2102L7
PPN: TES-XCMD2102L7

$238.15

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Limit switch XCMD, steel roller plunger, 1NC+1NO, snap action, 7 m cable

Documentation & Downloads

Specifications

Key Specifications

Indivisible sale quantity	1

Commercial status	Commercialised

Complementary

Switch actuation	By 30° cam
Cable composition	5 x 0.75 mm²
Contacts insulation form	Zb
Contact code designation	B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A

Electrical connection	Removable cable connector
Wire insulation material	PvR
Positive opening	With

Main

Range of product	Telemecanique Limit switches XC Standard
Product or component type	Limit switch
Sensor design	Miniature
Head type	Plunger head
Body material	Zamak
Fixing mode	By the body
Type of operator	Spring return roller plunger metal
Contacts type and composition	1 NC + 1 NO

Series name	Standard format
Device short name	XCMD
Body type	Fixed
Material	Metal
Head material	Zamak
Movement of operating head	Linear
Type of approach	Lateral approach, 2 directions
Contact operation	Snap action

Environment

Shock resistance	25 gn for 18 ms conforming to IEC 60068-2-27
IP degree of protection	IP66 conforming to IEC 60529, IP67 conforming to IEC 60529, IP68 conforming to IEC 60529
Overvoltage category	Class I
Standards	CSA C22.2 No 14 IEC 60947-5-1 UL 508
