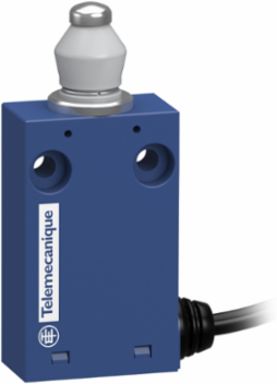

Telemecanique Sensors XCMH211AL1 XCMH Limit Switches Miniature Plastic Metal plunger with protective silicone boot NC + NO Snap L1
- MPN: XCMH211AL1
- PPN: TES-XCMH211AL1
CAD
$52.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
XCMH Limit Switches Miniature Plastic Metal plunger with protective silicone boot NC + NO Snap L1
Documentation & Downloads
Specifications
Key Specifications
- Movement Of Operating Head
- rotary
- Fixing Mode
- by the body
- Sensor Design
- miniature
- Head Material
- zamak
- Head Type
- plunger head
- Series Name
- standard format
- Body Type
- fixed
- Body Material
- plastic
- Number Of Poles
- 2
Range Of ProductTelemecanique Limit switches XC Standard
Type Of Operatorspring return roller lever thermoplastic
Product Or Component Typelimit switch
Materialplastic
Type Of Approachlateral approach, 2 directions
Contacts Type And Composition1 NC + 1 NO
Contact Operationsnap action
Device Short NameXCMH
Complementary
- Height
- 94-94 mm
- Electrical Connection
- fixed cable
- Net Weight
- 0.1 kg
- Switch Actuation
- by 30° cam
- Electrical Durability
- 5000000 cycles, DC-13, 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
- Positive Opening
- with
- Mechanical Durability
- 5000000 cycles
- Wire Insulation Material
- PvR
- Cable Composition
- 4 x 0.34 mm²
- Contact Code Designation
- C300, AC-15 (Ue = 240 V), Ie = 0.75 A EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A
- Depth
- 16 mm
Short-Circuit Protection6 A cartridge fuse gG
Cable Length1 m
[Uimp] Rated Impulse Withstand Voltage4 kV IEC 60664 || 4 kV IEC 60947-1
[Ui] Rated Insulation Voltage300 V 3)UL 508 || 300 V 3)IEC 60947-5-1 || 300 V 3)CSA C22.2 No 14
Positive Opening Minimum Force0.5 N
Contacts Insulation FormZb
Maximum Actuation Speed1.5 m/s
Minimum Force For Tripping0.1 N
Tracks24/31 mm
Width30 mm
Maximum Resistance Across Terminals25 MOhm IEC 60255-7 category 3
Environment
- Product Certifications
- CSA || CCC || UL
- Ambient Air Temperature For Operation
- -25-70 °C
- Shock Resistance
- 25 gn 18 ms IEC 60068-2-27
- Ip Degree Of Protection
- IP66 conforming to IEC 60529 || IP67 conforming to IEC 60529
- Electrical Shock Protection Class
- class II IEC 61140 || class II NF C 20-030
Ik Degree Of ProtectionIK04 EN 50102
StandardsUL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60204-1
Vibration Resistance5 gn 10-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Mercury FreeYes
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
