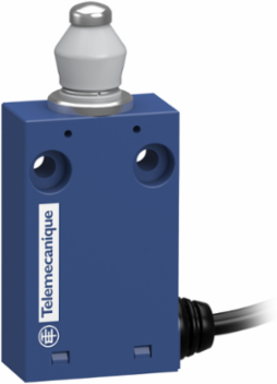

Telemecanique Sensors XCMH211AL05 XCMH Limit Switches Miniature Plastic Metal plunger with protective silicone boot NC + NO Snap L05
- MPN: XCMH211AL05
- PPN: TES-XCMH211AL05
CAD
$57.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
XCMH Limit Switches Miniature Plastic Metal plunger with protective silicone boot NC + NO Snap L05
Documentation & Downloads
Specifications
Key Specifications
- Movement Of Operating Head
- rotary
- Fixing Mode
- by the body
- Sensor Design
- miniature
- Head Material
- zamak
- Head Type
- plunger head
- Series Name
- standard format
- Body Type
- fixed
- Body Material
- plastic
- Number Of Poles
- 2
Range Of ProductTelemecanique Limit switches XC Standard
Type Of Operatorspring return roller lever thermoplastic
Product Or Component Typelimit switch
Materialplastic
Type Of Approachlateral approach, 2 directions
Contacts Type And Composition1 NC + 1 NO
Contact Operationsnap action
Device Short NameXCMH
Complementary
- Height
- 94-94 mm
- Electrical Connection
- fixed cable
- Net Weight
- 0.1 kg
- Switch Actuation
- by 30° cam
- Electrical Durability
- 5000000 cycles, DC-13, 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
- Positive Opening
- with
- Mechanical Durability
- 5000000 cycles
- Wire Insulation Material
- PvR
- Cable Composition
- 4 x 0.34 mm²
- Contact Code Designation
- C300, AC-15 (Ue = 240 V), Ie = 0.75 A EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A
- Depth
- 16 mm
Short-Circuit Protection6 A cartridge fuse gG
Cable Length1 m
[Uimp] Rated Impulse Withstand Voltage4 kV IEC 60664 || 4 kV IEC 60947-1
[Ui] Rated Insulation Voltage300 V 3)UL 508 || 300 V 3)IEC 60947-5-1 || 300 V 3)CSA C22.2 No 14
Positive Opening Minimum Force0.5 N
Contacts Insulation FormZb
Maximum Actuation Speed1.5 m/s
Minimum Force For Tripping0.1 N
Tracks24/31 mm
Width30 mm
Maximum Resistance Across Terminals25 MOhm IEC 60255-7 category 3
Environment
- Product Certifications
- CSA || CCC || UL
- Ambient Air Temperature For Operation
- -25-70 °C
- Shock Resistance
- 25 gn 18 ms IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 IEC 60529
- Electrical Shock Protection Class
- class II IEC 61140 || class II NF C 20-030
Ik Degree Of ProtectionIK04 EN 50102
StandardsUL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60204-1
Vibration Resistance5 gn 10-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
