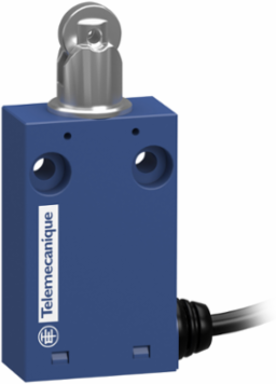

Telemecanique Sensors XCMH2102L5 XCMH Limit Switches Miniature Plastic Metal Roller Plunger NC + NO Snap L5
- MPN: XCMH2102L5
- PPN: TES-XCMH2102L5
CAD
$103.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
XCMH Limit Switches Miniature Plastic Metal Roller Plunger NC + NO Snap L5
Documentation & Downloads
Specifications
Key Specifications
| Movement Of Operating Head | linear |
|---|---|
| Fixing Mode | by the body |
| Sensor Design | miniature |
| Head Material | zamak |
| Head Type | plunger head |
| Series Name | standard format |
| Body Type | fixed |
| Body Material | plastic |
| Number Of Poles | 2 |
| Range Of Product | Telemecanique Limit switches XC Standard |
|---|---|
| Type Of Operator | spring return roller plunger metal |
| Product Or Component Type | limit switch |
| Material | plastic |
| Type Of Approach | lateral approach, 2 directions |
| Contacts Type And Composition | 1 NC + 1 NO |
| Contact Operation | snap action |
| Device Short Name | XCMH |
Complementary
| Height | 70.4-70.4 mm |
|---|---|
| Electrical Connection | fixed cable |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV IEC 60664 || 4 kV IEC 60947-1 |
| [Ui] Rated Insulation Voltage | 300 V 3)UL 508 || 300 V 3)IEC 60947-5-1 || 300 V 3)CSA C22.2 No 14 |
| Positive Opening Minimum Force | 35 N |
| Contacts Insulation Form | Zb |
| Maximum Actuation Speed | 0.5 m/s |
| Minimum Force For Tripping | 7 N |
| Contact Code Designation | C300, AC-15 (Ue = 240 V), Ie = 0.75 A EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A |
| Depth | 16 mm |
| Short-Circuit Protection | 6 A cartridge fuse gG |
|---|---|
| Cable Length | 5 m |
| Switch Actuation | by 30° cam |
| Electrical Durability | 5000000 cycles, DC-13, 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Positive Opening | with |
| Mechanical Durability | 5000000 cycles |
| Wire Insulation Material | PvR |
| Cable Composition | 4 x 0.34 mm² |
| Width | 30 mm |
| Maximum Resistance Across Terminals | 25 MOhm IEC 60255-7 category 3 |
Environment
| Product Certifications | UL || CSA || CCC |
|---|---|
| Ambient Air Temperature For Operation | -25-70 °C |
| Shock Resistance | 25 gn 18 ms IEC 60068-2-27 |
| Ip Degree Of Protection | IP66 IEC 60529 || IP67 IEC 60529 |
| Electrical Shock Protection Class | class II IEC 61140 || class II NF C 20-030 |
| Ik Degree Of Protection | IK04 EN 50102 |
|---|---|
| Standards | EN/IEC 60947-5-1 || UL 508 || EN/IEC 60204-1 || CSA C22.2 No 14 |
| Vibration Resistance | 5 gn 10-500 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Protective Treatment | TC |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
