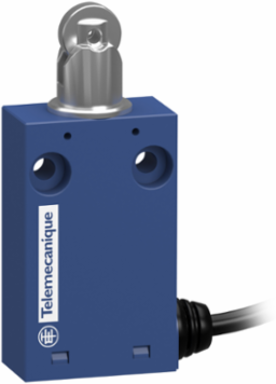

Telemecanique Sensors XCMH2902L5 XCMH Limit Switches Miniature Plastic Metal Roller Plunger 2 NC Snap L5
- MPN: XCMH2902L5
- PPN: TES-XCMH2902L5
CAD
$114.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
XCMH Limit Switches Miniature Plastic Metal Roller Plunger 2 NC Snap L5
Documentation & Downloads
Specifications
Key Specifications
- Movement Of Operating Head
- linear
- Fixing Mode
- by the body
- Sensor Design
- miniature
- Head Material
- zamak
- Head Type
- plunger head
- Series Name
- standard format
- Body Type
- fixed
- Body Material
- plastic
- Number Of Poles
- 2
Range Of ProductTelemecanique Limit switches XC Standard
Type Of Operatorspring return plunger metal
Product Or Component Typelimit switch
Materialplastic
Type Of Approachlateral approach, 2 directions
Contacts Type And Composition2 NC
Contact Operationsnap action
Device Short NameXCMH
Complementary
- Height
- 60-60 mm
- Minimum Actuation Speed
- 0.01 m/min
- Cable Length
- 5 m
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV IEC 60664 || 4 kV IEC 60947-1
- [Ui] Rated Insulation Voltage
- 300 V 3)UL 508 || 300 V 3)IEC 60947-5-1 || 300 V 3)CSA C22.2 No 14
- Positive Opening Minimum Force
- 42.5 N
- Contacts Insulation Form
- Zb
- Maximum Actuation Speed
- 0.5 m/s
- Minimum Force For Tripping
- 8.5 N
- Contact Code Designation
- C300, AC-15 (Ue = 240 V), Ie = 0.75 A EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A
- Depth
- 16 mm
Short-Circuit Protection6 A cartridge fuse gG
Electrical Connectionfixed cable
Net Weight0.08 kg
Switch Actuationby 30° cam
Electrical Durability5000000 cycles, DC-13, 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Positive Openingwith
Mechanical Durability5000000 cycles
Wire Insulation MaterialPvR
Cable Composition4 x 0.34 mm²
Width30 mm
Maximum Resistance Across Terminals25 MOhm IEC 60255-7 category 3
Environment
- Product Certifications
- UL || CCC || CSA
- Ambient Air Temperature For Operation
- -25-70 °C
- Shock Resistance
- 25 gn 18 ms IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 IEC 60529
- Electrical Shock Protection Class
- class II IEC 61140 || class II NF C 20-030
Ik Degree Of ProtectionIK04 EN 50102
StandardsEN/IEC 60947-5-1 || UL 508 || EN/IEC 60204-1 || CSA C22.2 No 14
Vibration Resistance5 gn 10-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
