Lutron LEFSQ-FH-WH-C Lumea 1.5A Quiet Fan Speed Control, 3-Speed, 120V, Gloss White
- MPN: LEFSQ-FH-WH-C
- UPC: 784276248327
- PPN: LUT-LEFSQ-FH-WH-C
- UNSPSC: 39122206
CAD
$36.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

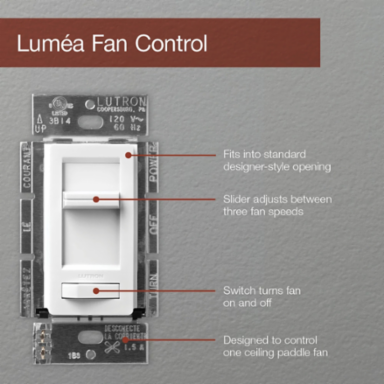

The Lutron Lumea Quiet Fan Speed Control is designed to conveniently set the speed of a single ceiling paddle fan. Install in a single pole or 3-way application; no neutral required. The Lumea Fan Control features a smooth, linear slider to adjust the fan’s speed and a rocker switch that turns the fan ON/OFF. Use the slider to select between 3-speeds (Low/Med/High) for a favorite preset level. Available in 3 gloss colors. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).
Features
- Includes (1) Lutron Lumea Quiet 3-Speed Fan Control; Gloss Finish, Clamshell Packaging
- Rated for 1.5A 3-speed Ceiling Paddle Fan
- For use with 1 ceiling paddle fan per control; not compatible with fans with proprietary remotes
- No Neutral Required; 120V
- Single Pole or 3-Way compatible
- Wire lead installation
- Rocker switch turns lights on/off to favorite preset level
- Linear slider adjusts preset fan speeds: Low, Medium, High
- Available in 3 Gloss colors
- Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately)
- Power-failure memory, Captive linear slider, Electrostatic discharge tested, Precise color matching, Mechanical air-gap switch to disconnect load power
Documentation & Downloads
Specifications
Key Specifications
- Aesthetic Finish
- Glossy
- Application
- Fan Speed Control
- Environmental Conditions
- Indoor use only
- Frequency Rating, Maximum
- 60 Hz
- Operating Temperature, Minimum
- 32 F
- Switch Type
- Rocker Switch with Captive Slider
- Color
- White
- Operating Temperature
- 32 to 104 F
Amperage Rating1.5 A
Decorative ColorWhite
Family ColorWhite
Operating Temperature, Maximum104 F
Voltage Rating120
ActuatorRocker Switch with Captive Slider
FinishGloss

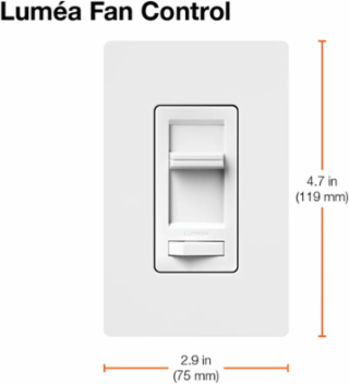

Size4.69 x 2.94;119 x 75 in;mm
