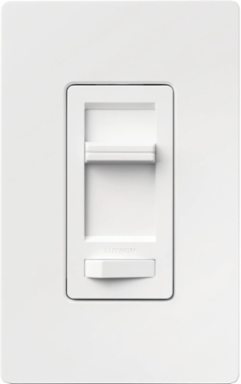

Lutron LECL-153PH-WH-C Lumea LED+ Dimmer Switch, 150W LED / 600W Incandescent, White
Lutron LECL-153PH-WH-C Lumea LED+ Dimmer Switch, 150W LED / 600W Incandescent, White
- MPN: LECL-153PH-WH-C
- UPC: 784276166409
- PPN: LUT-LECL-153PH-WH-C
- UNSPSC: 39122206
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$35.28/ EA
Description
The Lutron Lumea LED+ dimmer switch includes the most advanced technology for superior dimming for up to 150W of dimmable LED or 600W of Incandescent/Halogen. The Lumea dimmer switch features a smooth, linear slider to dim or brighten the lights while the rocker switch turns lights ON/OFF. Set a favorite preset level with the slider before turning on. The Lumea also features an easy low-end trim adjustment directly on the dimmer which eliminates complicated programming or having to turn the power off. Available in 3 gloss colors. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).
Features

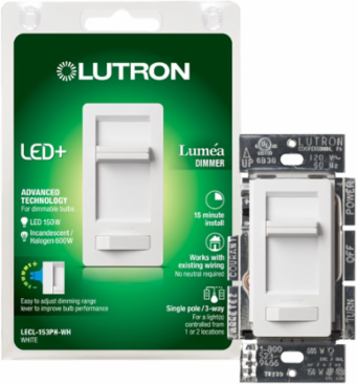

- Includes (1) Lutron Lumea LED+ Dimmer Switch; Gloss Finish, Clamshell Packaging
- Rated for up to 150W LED or 600W Incandescent/Halogen
- No Neutral Required; 120V
- Single Pole or 3-Way compatible; Wire lead installation
- Minimum load requires 1 compatible LED or 10W Incandescent/Halogen

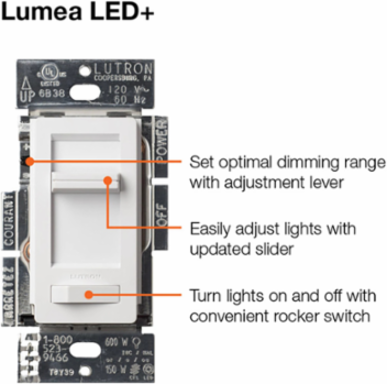

- Easy low-end trim adjustment lever; No complicated programming or turning off power to set
- Rocker switch turns lights on/off to favorite preset light level
- Linear slider dims and brightens the lights
- Available in 3 Gloss colors
- Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately)
- Controls 150 W LED/CFL (screw-base) or 600 W incandescent/halogen loads
- Rocker switch returns light to light level indicated by slider
- Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents.
Specifications
Specifications
- Aesthetic Finish
- Glossy
- Operating Temperature, Maximum
- 104 F
- Type
- Dimmer with on/off switch, 3-way/single-pole, clamshell packaging, for Canada
- Wattage
- 600 W
- Number of Poles
- 1
- Family Color
- White
- Switch Type
- Slide
- Face Material
- Metal;Plastic
- Finish
- Gloss
- Size

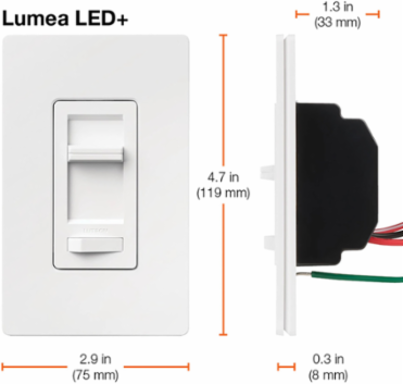

- 4.69 x 2.94;119 x 75 in;mm
- Operating Temperature
- 32 to 104 F
- Color
- White
- Actuator
- Rocker/Slide
ApplicationLighting Control
Operating Temperature, Minimum32 F
Voltage Rating120
Environmental ConditionsIndoor use only
Frequency Rating, Maximum60 Hz
Decorative ColorWhite
Connection TypeWire Leads
EnclosurePlastic
InsulationPlastic
MaterialPlastic/Metal
MountingWallbox
ConnectionWire Leads
