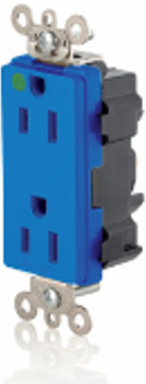

Leviton M1626-HGB Lev-Lok Duplex Receptacle, 15 Amp, 125 Volt, NEMA 5-15R, Hospital Grade, Blue
- MPN: M1626-HGB
- PPN: LEV-M1626-HGB
CAD
$40.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Lev-Lok Modular Wiring Device System is engineered for fast and easy installation. These devices employ a simple twist and lock wiring module that ensures a safe, reliable connection while at the same time providing for extremely fast and easy installation. Lev-Lok brand wiring devices address the reliability and performance concerns of specification engineers without sacrificing the contractor's need for fast, easy installation. Available in extra heavy duty hospital and industrial grades, and heavy duty commercial grade platforms.
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-1 & WD-6
- Warranty
- 10-Year Limited
cULusListed
NOM Certified057
Material Specifications
- Base Material
- Nylon
- Ground Clips
- Nickel-Plated Brass
- Locking Pins
- Solid Brass
- Mounting Strap
- Single Piece Nickel-Plated Brass with integral ground contact
Cover MaterialNylon
Line Contacts0.040" Thick Solid Brass
Mounting ScrewsTriple Combination Head, Steel
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
TerminationModular Terminals
Product Features
- Color
- Blue
- NEMA
- 5-15R
GradeHospital
Country of OriginChina
Environmental Specifications
- Flammability
- Rated V-2 per UL94
Operating Temperature-40C-60C
Electrical Specifications
- Amperage
- 15 Amp
- Dielectric Voltage
- Withstands 2000V per UL498
- Maximum Working Voltage
- 125V as rated
- Temperature Rise
- Max 30C after 250 cycles OL at 200 percent rated current
- Wire
- 3
Current InterruptingCertified for current interrupting at full rated current
GroundingSelf-Grounding
Pole2
Voltage125 Volt
AC Horsepower Ratings
- Horsepower Rating
- 1/2 HP
