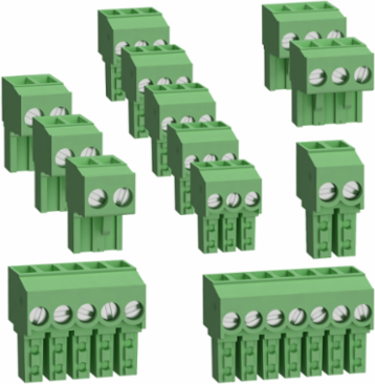

Schneider Electric TM172ASCTB18 Modicon M172 18 I/Os Terminal Block 70 mm Height, 120 mm Width
- MPN: TM172ASCTB18
- PPN: SCH-TM172ASCTB18
CAD
$25.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Modicon M172 from Schneider Electric is designed for robust integration in automation and control systems, featuring an efficient terminal block setup with 18 input/output points. With its compact dimensions of 70 mm in height and 120 mm in width, this module optimizes space while providing reliable connectivity for various industrial applications. The M172 effectively addresses the demands of PLC, HMI, and data acquisition environments, making it a valuable component for enhancing system performance and streamlining operation processes. Its thoughtful design underscores Schneider Electric's commitment to quality and reliability in industrial automation solutions.
Features
- This connection accessory is engineered for seamless physical and electrical integration with the Schneider Electric Modicon M172 Performance Logic Controller platform. It acts as a dedicated terminal framework for 18 I/O base controllers, preventing configuration mismatches and ensuring zero communication drops across your HVAC or pumping automation networks.
- his single multi-functional block features 18 distinct connection points tailored to simultaneously route analog and digital inputs/outputs, high-speed counters, power supplies, and critical Modbus RS485 or CAN bus wiring. This dense layout eliminates layout clutter in your control panel by routing all signal variants through a centralized interface.
- Built as a removable, pluggable terminal block assembly, this component allows maintenance technicians to swap out the underlying M172 logic controller without disconnecting individual field wires.
