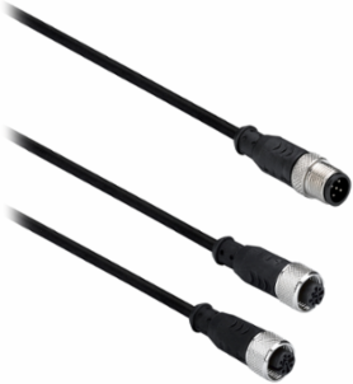

Telemecanique Sensors XZCRSE Y M12 5 poles splitters emitter for safety light curtain integrated muting
- MPN: XZCRSE
- PPN: TES-XZCRSE
- UNSPSC: 39122221
CAD
$133.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Y M12 5 poles splitters emitter for safety light curtain integrated muting
Documentation & Downloads
Specifications
Key Specifications
- Accessory / Separate Part Category
- cabling accessory
Accessory / Separate Part Typejumper cable
Complementary
- Collar Material
- metal
- Cable Outer Diameter
- 5 mm
- [Ue] Rated Operational Voltage
- 30 V DC
- Insulation Resistance
- >= 100 MOhm
- [In] Rated Current
- 1.5 A
- Jumper Cable End 1
- M12 male 5 pins straight screw-on
Jumper Cable End 2M12 female 5 pins straight screw-on
Wire Insulation MaterialPVC
Maximum Resistance Across Terminals10 mOhm
Cable Length0.5 m
Cable Composition5 x 0.25 mm²
Net Weight0.07 kg
Offer Sustainability
- Circularity Profile
- ENVEOLI1406015EN
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free Of Svhc
- Yes
Rohs Exemption InformationYes
Environmental DisclosureENVPEP1406015EN
Toxic Heavy Metal FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Environment
- Ambient Air Temperature For Operation
- -30-80 °C static
- Ip Degree Of Protection
- IP65 || IP67
Ambient Air Temperature For Storage-30-80 °C
