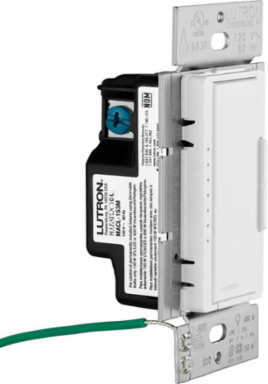

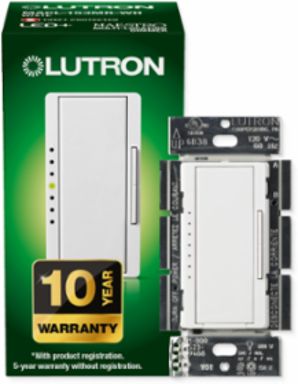

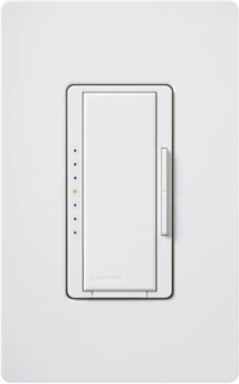

Lutron MACL-153M-WH-C Maestro LED Dimmer Switch, 150W Dimmable LED/CFL or 600W Incandescent, White
Lutron MACL-153M-WH-C Maestro LED Dimmer Switch, 150W Dimmable LED/CFL or 600W Incandescent, White
- MPN: MACL-153M-WH-C
- UPC: 784276269445
- PPN: LUT-MACL-153M-WH-C
- UNSPSC: 39122206
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$45.55/ EA
Description
The Maestro LED+ dimmer switch provides optimal dimming performance of LED bulbs. This dimmer switch works with up to 150-Watt of dimmable LED/CFL or 600-Watt of incandescent/halogen, allowing you to control multiple bulb types on the same circuit. It is designed to control a broad range of dimmable LED and CFL bulbs from a variety of brands including Philips, Cree, GE, EcoSmart and Lighting Science. Use the rocker to adjust the light level for any activity or set the preset level to ensure lights always turn on to your desired light level. Advanced features include delayed fade to off, which allows time to exit a room or to get into bed before the lights turn off. Coordinating Claro wall plate sold separately.
Features
- Tested on 1,000s of bulbs and dozens of brands for flicker-free dimming.
- Provides over 250 lighting levels so you can create the perfect light for any activity
- Works with up to 150 Watts of dimmable LED/CFL bulbs or 600 Watts of Incandescent/Halogen bulbs
- Lutron patented technology to optimize the dim range of your bulb and prevent interference with other dimmers in the home
- Can be used in single-pole or 3-Way/multi-location dimming applications (up to 10 locations, Maestro companion dimmer MA-RR-XX required)

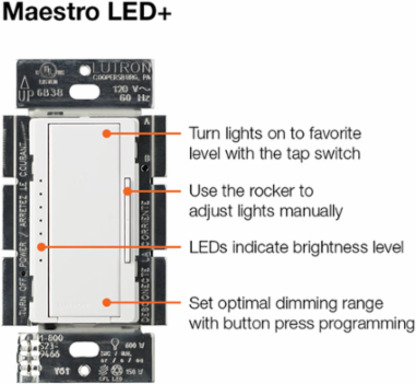

- Easy-to-operate tap switch turns lights on/off to favorite light level. Rocker dims and brightens. Advanced programming settings for features such as customizable delayed-fade-to off
- Installs in as little as 15 minutes in homes of all ages – NO NEUTRAL REQUIRED
- Includes (1) Maestro LED+ (formerly C.L) dimmer switch; coordinating wallplate sold separately
- Capable of controlling up to 150 W Dimmable CFL / LED or 600 W Incandescent / Halogen or Mixed bulb type per Multigang and Mixed Bulb Type Ratings table
- 100% factory tested
- Controls dimmable 150 W LED/CFL (screw-base) or 600 W incandescent/halogen loads
- Provides true dimming from each location (with companion dimmers)
- Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents.
Specifications
Specifications
- Environmental Conditions
- 0 to 90% humidity, non-condensing. Indoor use only.
- Wattage
- 600 W
- Operating Temperature, Maximum
- 104 F
- Voltage Rating
- 120
- Aesthetic Finish
- Glossy
- Switch Type
- Tapswitch
- Decorative Color
- White
- Connection Type
- Screw Terminal
- Finish
- Gloss

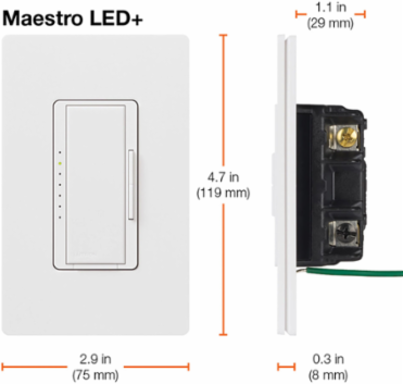

- Size
- 4.69 x 2.94;119 x 75 in;mm
- Connection
- Screw terminal
- Mounting
- Wallbox
- Material
- Plastic/Metal
Operating Temperature, Minimum32 F
Frequency Rating, Minimum50 Hz
TypeDigital fade dimmer, multi-location/3-way/single-pole
ApplicationLighting Control
Family ColorWhite
Number of Poles1
Face MaterialMetal;Plastic
Frequency Rating50 to 60 Hz
EnclosurePlastic
InsulationPlastic
ActuatorTapswitch
ColorWhite
Operating Temperature32 to 104 F
