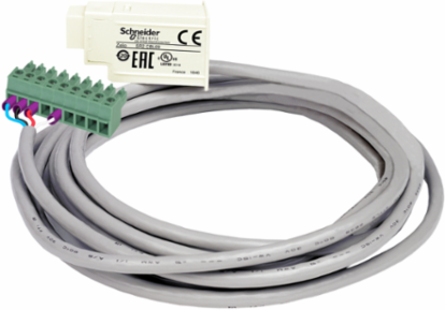

Schneider Electric SR2CBL09 Zelio Logic Connecting Cable for Smart Relay, 2.5 Meter, RS232 Interface
- MPN: SR2CBL09
- PPN: SCH-SR2CBL09
CAD
$122.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

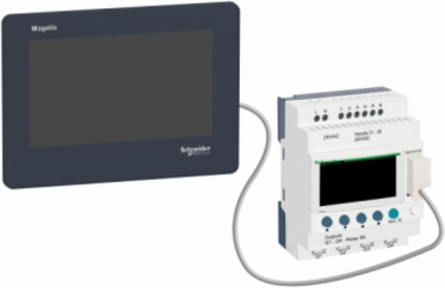

This product is part of the Zelio Logic range, an offer of smart relays for simple automation systems from 10 to 40 I/Os. This connecting cable enables to link Magelis small panel to Zelio Logic smart relay. The length of this cable is 2.5m. This connecting cable is equipped with 3-pin connector and 9-pin terminal block. It offers RS232 physical interface. It is suitable for use with Vijeo Designer software and to link Magelis small panel to smart relay. This product is compatible with Zelio Logic compact and modular smart relay HMISTO501. Simple to select, install and program, Zelio Logic is suitable for all your applications. Flexible, it offers you the choice of 2 ranges, compact or modular, extendable and 2 programming languages (FBD or LADDER). Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, United States
Physical Attributes
- Cable Length
- 2.5 m
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Connector Type
- 3-pin for a programming terminal, 9-pin terminal block
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1403020EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1845
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Accessory / Separate Part Category
- connection accessories
- Accessory / Separate Part Type
- connecting cable
- Package Weight(Lbs)
- 72.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Product Specific Applicationto be used with Vijeo Designer software, to link Magelis small panel to smart relay
Local Publishable Date2026-01-12
Stocking FlagN
Device TypePLC System - PLC Component
TraceabilityNo
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Range Of ProductZelio Logic
Sustainable PackagingNo
Pep CodeENVPEP1403020EN
Accessory / Separate Part Destinationfor smart relay
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8544429090
Environment Attributes Main
- Product Compatibility
- Zelio Logic compact and modular smart relay, HMISTO501, HMISTO705
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1403020EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Take BackNo
China Rohs RegulationX
Circularity ProfileENVEOLI1403020EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1403020EN
General Attributes
- Range Of Product
- Zelio Logic
ETIM
- ETIM 8
- EC000237
ETIM 9EC000237
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
