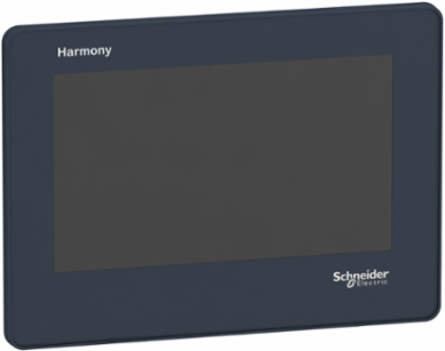

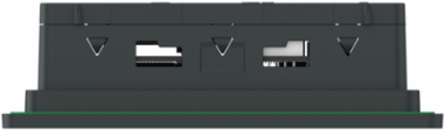

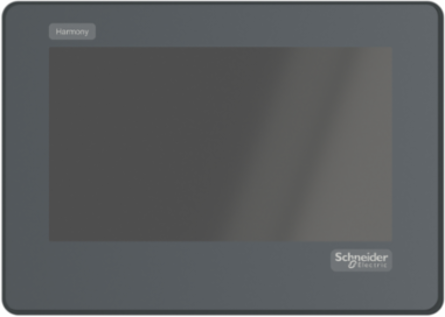

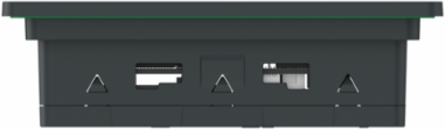

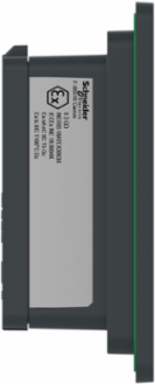

Schneider Electric HMISTO705 Harmony STO Touch Panel Screen 4.3 Inch TFT LCD, 480x272 Pixels, NEMA 4X
- MPN: HMISTO705
- PPN: SCH-HMISTO705
CAD
$399.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Magelis STO small touchscreen operator interface (HMI) is supplied with 12V to 24V DC, has a 4.3" color TFT LCD display with, 480 x 272 pixels and 26MB EPROM. It also has 1 host + 1 mini-B USB ports and 1 RS232C / RS485 port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays color graphic pages. Its RS485 host port makes it ideal to supervise and control simple systems and machines.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, United Kingdom, Mexico, Sweden, Singapore, United States
Depth38.8 mm
Physical Attributes
- Display Size
- 4.3 inch
Display Color65536 colours
Complementary Attributes
- Integrated Connection Type

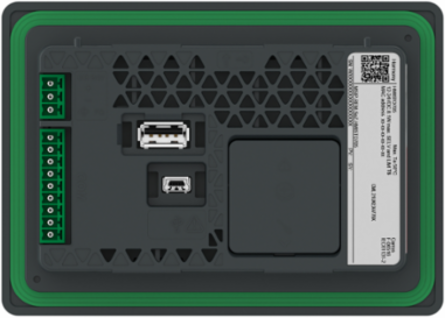

- 1 USB 2.0 type mini B, 1 USB 2.0 type A, 1 serial link - 9-pin terminal block - RS232C 2400...115200 bps)
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Character Font
- ASCII (European characters), Chinese (simplified Chinese), Korean, Japanese (ANK, Kanji), Cyrillic, Taiwanese (traditional Chinese)
- Electromagnetic Compatibility
- resistance to radiated electromagnetic fields - test level: 10 V/m (80 MHz...2.7 GHz), resistance to electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to EN 61000-4-2, resistance to electrostatic discharge - test level: 6 kV level 3 (direct contact) conforming to EN 61000-4-2
- Vibration Resistance
- 1 gn 5-150 Hz) IEC 61131-2, 3.5 mm constant amplitude 5-150 Hz) IEC 61131-2
- Cut-out Dimensions
- 77.5 x 112.5 mm, 66 x 105 mm with mounting adaptor
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.30795, 0.3 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 27 kg CO2 eq., 26.643
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Manufacturing Carbon Footprint
- 26.643
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 4
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Display Resolution
- 480 x 272 pixels
- Enclosure Material
- PPT
- Front Material
- plastic
- Power Consumption In W
- 7.5 W
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Harmony STO & STU
- Returnability
- Yes
- Software Designation
- EcoStruxure Operator Terminal Expert
- Software Version
- v5.9.4
- Sustainable Packaging
- No
- Touch Panel
- analogue
- Display Color
- 65536 colours
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To provide a compact panel HMI with enhanced communication capabilities, during 15 years and a 100% rate at 7.5W，based on below function:& 10- 4.3" Touchscreen panel.& 10- I/O connectors(RS232 & USB2.0 A).& 10- IP65f (front panel), IP20 (rear panel).
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime, In Kwh
- 985.5
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; IN
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; IN
- Height Nominal
- 90.4 mm
- [Us] Rated Supply Voltage
- 12...24 V DC - 10...20 %
- F-gas Usage Performance
- Only air and vacuum used for insulation / breaking, no F-gas including SF6
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- No
- Warranty (In Months)
- 18
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]
- 26.586
- Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]
- 26.643
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]
- 345.32
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]
- 2.4534
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]
- 10.604
- Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]
- 359.52
- Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
- 9171.2
- Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]
- -9.677
- Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]
- -9.4554
- Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]
- 24.28
- Materials For Recycling (Kg) Total Life Cycle
- 0.1866
- Materials For Recycling (Kg) Installation [A5]
- 0.1368
- Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
- 8.9406
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 91.324
- Photochemical Ozone Formation (Kg Of Nmvoc Equiv) Operational Energy Use [B6]
- 1.4526
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle
- 4.7806
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]
- -0.3572
- Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]
- 2.6379
- Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]
- 10.605
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 12.718
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]
- -1.0085
- Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 4.7806
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 13503.5255
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4]
- 0.9281
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 13149
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
- -11.667
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 2.4865
- Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 10.232
- Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
- 1.3171
- Water Use (M3 Eq) Operational Energy Use [B6]
- 24.476
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Downloadable Protocolsthird party protocols, Modbus
Memory Descriptionback up of data 512 KB, application memory 26 MB
Certificate AgencyKCC, CE, UL, C-tick, ATEX zone 2/22, cUL, UKCA
Carbon Footprint Of The Distribution Phase [A4]0.066671, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.2 kg CO2 eq., 0.23703
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]610 kg CO2 eq., 609.67
Local Publishable Date2026-01-12
Stocking FlagN
Device TypeHMI - Graphical display unit
TraceabilityYes
Average Life Duration7 year(s)
Use Carbon Footprint609.67
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1511015EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1920
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Brightness16 levels via touch panel
Display Typecolour TFT LCD
Fixing Modeby 2 installation fasteners 1.5 to 6 mm thick panel
Number Of Pages8999
Processor NameARM926EJ-S
Product Or Component Typetouch panel screen
Realtime Clockwith RTC-battery set optional
Shock Resistance15 gn 11 msIEC 61131-2
Software PackageEcoStruxure Operator Terminal Expert
Supplyexternal source
Total Lifecycle Carbon Footprint637 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP1511015EN
Pep Verification Date2024-09-19
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourcereferent product
Functional-unit Quantity1
Reference Lifetime, In Y15
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; CN
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; IN
Recyclability Potential, In %17
Width Nominal124.9 mm
F-gas FreeOnly air and vacuum used for insulation / breaking, no F-gas including SF6
Halogen-free StatusProduct contains halogen above thresholds
Package Weight(Lbs)524.000 g
Take-backNo
Acidification (Ap) (Mole Of H+ Equiv) Operational Energy Use [B6]3.9615
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]609.37
Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]609.67
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4]0.9281
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]13149
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]-12.024
Ecotoxicity (Fresh Water) (Ctue) Installation [A5]1.8292
Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]34.517
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]32.458
Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6]4.4954
Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]558.47
Materials For Recycling (Kg) Manufacturing [A1-a3]0.0008
Materials For Recycling (Kg) End Of Life [C1-c4]0.049
Non-hazardous Waste Disposed Of (Kg) Installation [A5]0.7664
Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-3.677
Terrestrial Eutrophication (Mole Of N Equiv) Operational Energy Use [B6]5.3852
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]4.7806
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]358.04
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]14589
Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]-13.033
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]1440.2
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle4.4234
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-0.3572
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]340.54
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]2.4534
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]10.604
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle2.4865
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-2.3256
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]1440.2
Water Use (M3 Eq) Manufacturing [A1-a3]6.8442
Environment Attributes Main
- Ambient Air Temperature For Storage
- -20-60 °C, -20-60 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Carbon Footprint
- 636.9246509999999
- Circularity Profile
- ENVEOLI1511015EN
- Eu Rohs Directive
- Compliant By Exemption
- Nema Degree Of Protection
- NEMA 4X/13 front panel indoor use)
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1511015EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ip Degree Of ProtectionIP65f front panel), IP20 rear panel)
Halogene PerformanceProduct contains halogen above thresholds
China Rohs RegulationX
Silicon FreeNo
Ambient Air Temperature For Operation0-50 °C
Environmental DisclosureENVPEP1511015EN
Halogen Content PerformanceProduct contains halogen above thresholds
Operating Altitude6561.68 ft (2000 m)
Packaging Without Single Use PlasticNo
Relative Humidity10-90 % without condensation
Pep Verification Date2024-09-19
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type

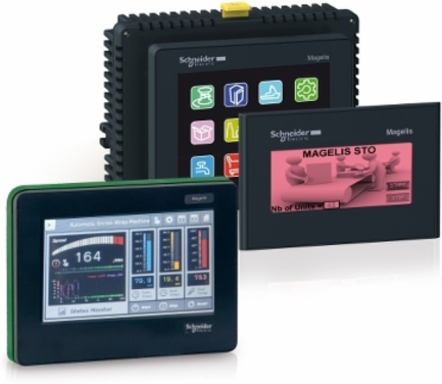

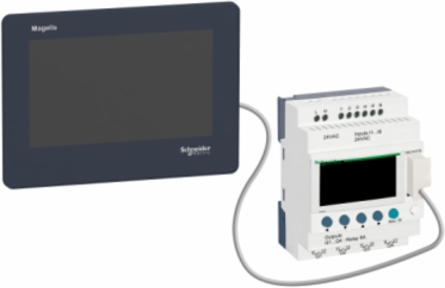

- touch panel screen
Range Of ProductHarmony STO & STU
ETIM
- ETIM 8
- EC001412
ETIM 9EC001412
Loading video…
Accessories
Loading carousel layout...
Loading carousel layout...
Similar Products
Loading carousel layout...
Loading carousel layout...
CAD
$399.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
CAD$399.31/ EA
Loading add to cart quantity...
