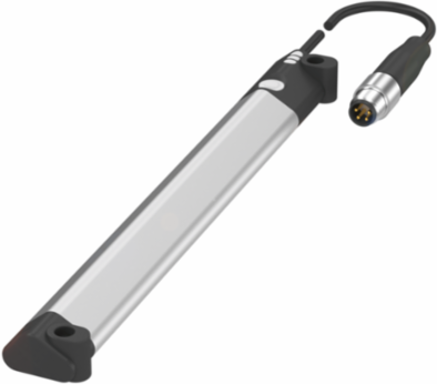

Balluff BMP 01-EL1PP21A-0128-00-P00,5-S75 Magnetic Field Positioning System BMP 01-EL1PP21A-0128-00-P00,5-S75
- MPN: BMP 01-EL1PP21A-0128-00-P00,5-S75
- PPN: BAL-BMP0001
CAD
$466.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
BMP magnetic field position measuring systems give you the ability to monitor running processes reliably and wear-free. Used for example in compact grippers, stamping equipment or tool changers, their intelligent linear feedback assists you in maintaining an overview of all the processes, ensuring simultaneous processing of objects while remaining energy-efficient. In this way our magnetic field position measuring systems provide high process security and automation quality.
Documentation & Downloads
Specifications
Key Specifications
| Measuring range | 128 mm |
|---|---|
| Analog output | Analog, voltage/Analog, current selectable 0…10 V/4…20 mA |
| Resolution | ≤ 1 µm (IO-Link), 12 Bit (Analog) |
| Operating voltage Ub | 15-30 VDC |
| Housing material | PA 12Aluminum |
| IP rating | IP67 |
| Dimension | 17.5 x 9.6 x 138 mm |
|---|---|
| Interface | IO-Link 1.1 |
| Repeat accuracy | ± 100 µm |
| Connection | Cable with connector, M8x1-Male, 4-pin, 0.5 m, PUR |
| Ambient temperature | -25-85 °C |
| Approval/Conformity | CE, cURus, IO-Link, WEEE |
