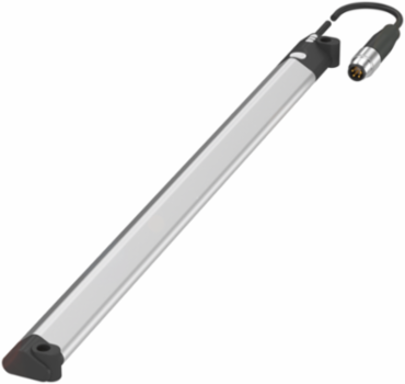

Balluff BMP 01-EL1PP21A-0224-00-P00,5-S75 Magnetic Field Positioning System BMP 01-EL1PP21A-0224-00-P00,5-S75
Balluff BMP 01-EL1PP21A-0224-00-P00,5-S75 Magnetic Field Positioning System BMP 01-EL1PP21A-0224-00-P00,5-S75
- MPN: BMP 01-EL1PP21A-0224-00-P00,5-S75
- PPN: BAL-BMP000H
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$595.41/ EA
Description
BMP magnetic field position measuring systems give you the ability to monitor running processes reliably and wear-free. Used for example in compact grippers, stamping equipment or tool changers, their intelligent linear feedback assists you in maintaining an overview of all the processes, ensuring simultaneous processing of objects while remaining energy-efficient. In this way our magnetic field position measuring systems provide high process security and automation quality.
Specifications
Specifications
- Measuring range
- 224 mm
- Analog output
- Analog, voltage/Analog, current selectable 0…10 V/4…20 mA
- Resolution
- ≤ 1 µm (IO-Link), 12 Bit (Analog)
- Operating voltage Ub
- 15-30 VDC
- Housing material
- PA 12Aluminum
- IP rating
- IP67
Dimension17.5 x 9.6 x 234 mm
InterfaceIO-Link 1.1
Repeat accuracy± 100 µm
ConnectionCable with connector, M8x1-Male, 4-pin, 0.5 m, PUR
Ambient temperature-25-85 °C
Approval/ConformityCE, cURus, IO-Link, WEEE
