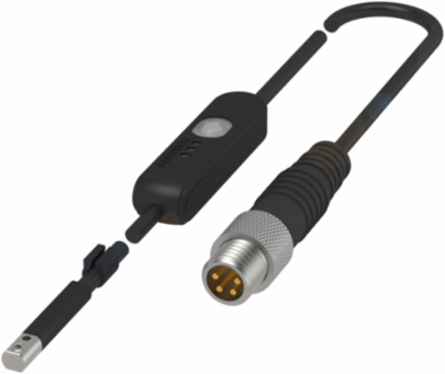

Balluff BMF 203K-H-PO-C-A2-S75-00,3 Magnetic field sensors for C-slot BMF 203K-H-PO-C-A2-S75-00,3
- MPN: BMF 203K-H-PO-C-A2-S75-00,3
- PPN: BAL-BMF00K5
CAD
$184.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Our magnetic cylinder sensors for C-slots distinguish themselves with their firm grip. Features: can be mounted flush – suitable for space-critical applications; can be installed from above – also fit where the slot ends are closed; contact-free detection of the piston position through cylinder walls; can be used for cylinders and grippers with strong or weak magnets. Extremely short configurations are available.
Documentation & Downloads
Specifications
Key Specifications
| Dimension | 20 x 2.9 x 3.6 mm |
|---|---|
| Cable | PUR, 0.30 m |
| Mounting | can be installed in C-slot from above |
| Switching output | PNP Normally closed (NC) |
| Ambient temperature | -25-80 °C |
| Approval/Conformity | CE, cULus, WEEE |
| Connection | M8x1-Male, 4-pin |
|---|---|
| Application | Pneumatic cylinder with C-slot. For dimensions, see sketch in product view. |
| Housing material | PA 12 |
| Operating voltage Ub | 10-30 VDC |
| IP rating | IP67 |
