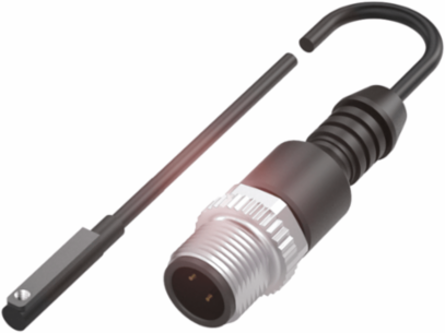

Balluff BMF 214K-PS-C-2A-SA2-S4-00,3 Magnetic field sensors for C-slot BMF 214K-PS-C-2A-SA2-S4-00,3
Balluff BMF 214K-PS-C-2A-SA2-S4-00,3 Magnetic field sensors for C-slot BMF 214K-PS-C-2A-SA2-S4-00,3
- MPN: BMF 214K-PS-C-2A-SA2-S4-00,3
- PPN: BAL-BMF00FC
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$60.57/ EA
Description
Our magnetic cylinder sensors for C-slots distinguish themselves with their firm grip. Features: can be mounted flush – suitable for space-critical applications; can be installed from above – also fit where the slot ends are closed; contact-free detection of the piston position through cylinder walls; can be used for cylinders and grippers with strong or weak magnets. Extremely short configurations are available.
Specifications
Specifications
- Dimension
- 16.8 x 2.9 x 4.5 mm
- Cable
- PUR, 0.30 m
- Mounting
- C-slot, SMC, Bimba, Schunk
- Switching output
- PNP Normally open (NO)
- Operating voltage Ub
- 10-30 VDC
- IP rating
- IP67
ConnectionM12x1-Male, 4-pin, A-coded
ApplicationOptimized response path especially suited for short-stroke cylinders.
Housing materialPA 12
Switching frequency7000 Hz
Ambient temperature-25-85 °C
Approval/ConformitycULus, CE, WEEE
