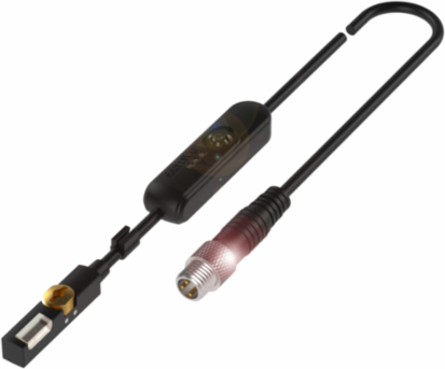

Balluff BMF 235K-H-NO-C-A2-S75-00,3 Magnetic Field Sensor, IP67, 23.5 x 6.2 x 5 mm, NPN NC Output
- MPN: BMF 235K-H-NO-C-A2-S75-00,3
- PPN: BAL-BMF00L9
CAD
$235.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Magnetic Field Sensor, IP67, 23.5 x 6.2 x 5 mm, NPN NC Output
Documentation & Downloads
Specifications
Additional
| Switching Output | NPN Normally Closed (NC) |
|---|---|
| Ambient Temperature Range | -25 to 80 C |
| Dimension | 23.5 x 6.2 x 5 mm |
| Cable | PUR, 0.3 m length, 2.4 mm diameter |
| Approval/Conformity | CE, cULus, EAC, WEEE |
| Operating Voltage | 10-30 VDC |
|---|---|
| IP Rating | IP67 |
| Connection | M8x1 Male, 4-pin |
| Housing Material | PA 12 |
| Mounting | Can be installed in T-slot from above |
