Description

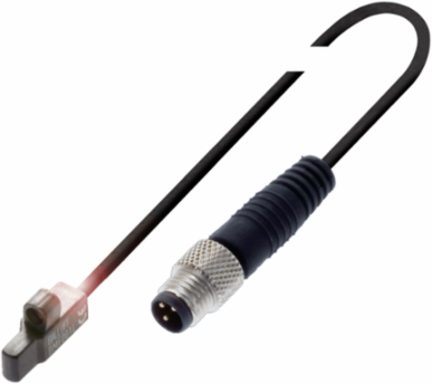

The Balluff BMF 103K-PS-C-2A-SA2-S49-00 Magnetic Field Sensor is engineered for precision and reliability, making it an ideal choice for applications involving short-stroke cylinders. With its compact dimensions of just 9 x 4.8 x 16 mm and robust PBT housing, this sensor is designed to withstand harsh environments, boasting an IP67 rating that ensures protection against dust and water ingress. Operating within a voltage range of 10-30 VDC and featuring a high switching frequency of up to 30,000 Hz, it delivers rapid and accurate performance. The sensor's PNP normally open (NO) switching output, combined with a durable PUR cable and an ambient temperature tolerance of -25 to 85 °C, makes it a versatile solution for various industrial automation needs.
Specifications
Specifications
- Dimension
- 9 x 4.8 x 16 mm
- Cable
- PUR, 0.5 m
- Mounting
- Mounting bracket BMF 103-HW*
- Switching output
- PNP Normally open (NO)
- Operating voltage Ub
- 10-30 VDC
- IP rating
- IP67
ConnectionM8x1-Male, 3-pin
ApplicationOptimized response path especially suited for short-stroke cylinders.
Housing materialPBT
Switching frequency30000 Hz
Ambient temperature-25-85 °C
Approval/ConformitycULus, CE, WEEE
