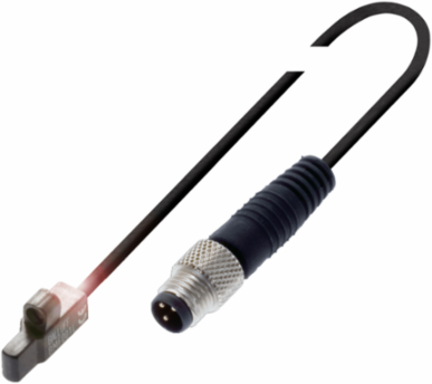

Balluff BMF 103K-PS-C-2A-SA7-S49-00,3 Magnetic Field Sensor, 9 x 4.8 x 16 mm, IP67, 7000 Hz
- MPN: BMF 103K-PS-C-2A-SA7-S49-00,3
- PPN: BAL-BMF001P
CAD
$128.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Balluff magnetic field sensor is a compact and highly efficient device designed for precise detection in industrial applications. With dimensions of just 9 x 4.8 x 16 mm and an impressive switching frequency of 7000 Hz, this sensor is engineered to work seamlessly with radially magnetized magnets, such as those from Schunk. Its robust construction features an LCP housing and an IP67 rating, ensuring reliable performance even in challenging environments with temperatures ranging from -25 to 85 C. The sensor operates on a voltage range of 10-30 VDC and offers a PNP normally open (NO) switching output, making it a versatile choice for various automation tasks.
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 10-30 VDC
- Switching Output
- PNP Normally open (NO)
- Rated Short Circuit Current
- 100 A
- Load Capacitance Max
- 1 bcF
- Rated Switch Field Strength
- 1.2 kA/m
- Ripple Max
- 15 % of Ue
- Hysteresis Max
- 45 %
- Turn-on Delay Max
- 0.02 ms
- Polarity Reversal Protected
- Yes
- Short-circuit Protection
- Yes
- Cable
- PUR, 0.3 m, 2.5 mm diameter
- Housing Material
- LCP
- IP Rating
- IP67
- Mounting
- Mounting bracket BMF 103-HW*
- Application
- radially magnetized magnets (Schunk)
Switching Frequency7000 Hz
Rated Operating Current100 mA
No-load Current Max3.5 mA
Assured Switching Field Strength2 kA/m
Residual Current Max10 bcA
Voltage Drop Static Max1 V
Turn-off Delay Max0.02 ms
Utilization CategoryDC-13
Protection Against Device Mix-upsYes
Dimension9 x 4.8 x 16 mm
ConnectionM8x1-Male, 3-pin
Material Sensing SurfaceLCP
Ambient Temperature-25 to 85 b0C
Approval/ConformitycULus, CE, WEEE
Contamination Scale3
