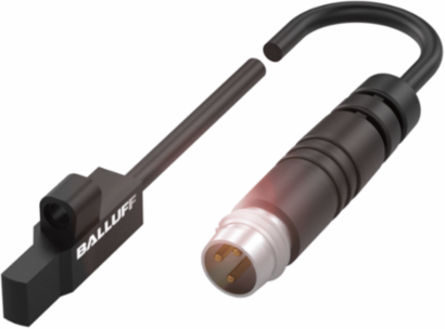

Balluff BMF 103K-PS-C-2A-S49-00,2 Magnetic Field Sensor, 9 x 4.8 x 16 mm, IP67, 10-30 VDC
Balluff BMF 103K-PS-C-2A-S49-00,2 Magnetic Field Sensor, 9 x 4.8 x 16 mm, IP67, 10-30 VDC
- MPN: BMF 103K-PS-C-2A-S49-00,2
- PPN: BAL-BMF00KJ
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$117.44/ EA
Description
The Balluff BMF 103K-PS-C-2A-S49-00 magnetic field sensor is engineered for precision and reliability in demanding environments. With its compact dimensions of 9 x 4.8 x 16 mm and robust PBT housing, this sensor is designed to withstand harsh conditions, boasting an impressive IP67 rating that ensures protection against dust and water ingress. Operating within a voltage range of 10-30 VDC and capable of switching frequencies up to 30,000 Hz, it is particularly well-suited for applications involving short-stroke cylinders, providing optimized response paths. Additionally, the sensor's wide ambient temperature range of -25 to 85 °C makes it versatile for various industrial applications, while its cULus and CE approvals guarantee compliance with international safety standards.
Specifications
Specifications
- Dimension
- 9 x 4.8 x 16 mm
- Cable
- PUR, 0.2 m
- Housing material
- PBT
- Switching frequency
- 30000 Hz
- Ambient temperature
- -25-85 °C
- Approval/Conformity
- cULus, CE, WEEE
ConnectionM8x1-Male, 3-pin
ApplicationOptimized response path especially suited for short-stroke cylinders.
Switching outputPNP Normally open (NO)
Operating voltage Ub10-30 VDC
IP ratingIP67
