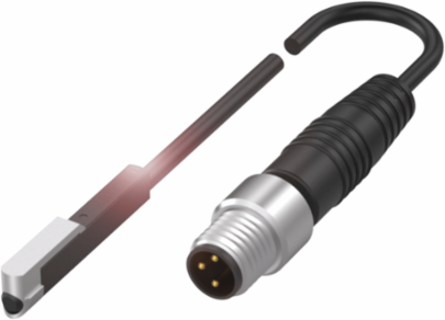

Balluff BMF 303K-PS-C-2A-SA6-S49-00,3 Magnetic Field Sensor, 25.5 x 3 x 4.5 mm, IP67, 30000 Hz
- MPN: BMF 303K-PS-C-2A-SA6-S49-00,3
- PPN: BAL-BMF0049
CAD
$224.41
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Magnetic Field Sensor, 25.5 x 3 x 4.5 mm, IP67, 30000 Hz
Documentation & Downloads
Specifications
Additional
| Operating Voltage | 10-30 VDC |
|---|---|
| IP Rating | IP67 |
| Rated Short Circuit Current | 100 A |
| Rated Switch Field Strength | 1.2 kA/m |
| Load Capacitance Max | 1 b5F |
| Rated Insulation Voltage | 75 V DC |
| Ripple Max | 15 % |
| Turn-On Delay Max | 0.02 ms |
| Dimension | 25.5 x 3 x 4.5 mm |
| Cable Length | 0.3 m |
| Mounting | Mounting bracket BMF 303-HW* |
| Material Jacket | PUR |
| Switching Output | PNP Normally open (NO) |
| Switching Frequency | 30000 Hz |
|---|---|
| Rated Operating Current | 100 mA |
| Assured Switching Field Strength | 2 kA/m |
| Hysteresis Max | 45 % |
| No-Load Current Max | 3.5 mA |
| Residual Current Max | 10 b5A |
| Turn-Off Delay Max | 0.02 ms |
| Ambient Temperature | -25 to 85 B0C |
| Connection | M8x1-Male, 3-pin |
| Cable Diameter | 2.5 mm |
| Housing Material | LCP |
| Material Sensing Surface | LCP |
| Approval/Conformity | cULus, CE, WEEE |
