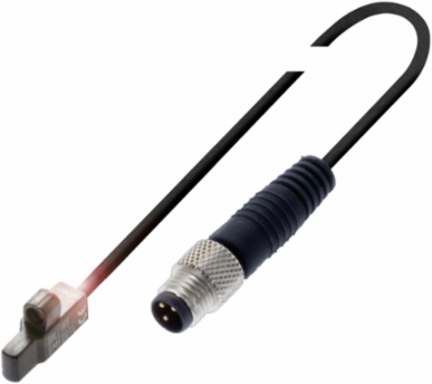

Balluff BMF 103K-PS-C-2A-SA2-S49-01 Magnetic field sensors for T-slot BMF 103K-PS-C-2A-SA2-S49-01
- MPN: BMF 103K-PS-C-2A-SA2-S49-01
- PPN: BAL-BMF00HE
CAD
$196.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Our magnetic field sensors for T-slots detect the piston position without contact through the cylinder walls. Features: can be mounted directly into the slot, firm grip, can be mounted flush for space-critical applications, can be used for cylinders and grippers with strong or weak magnets, bright LEDs. Extremely short configurations as well as sensors with metal housings or magnetic field-sensitive electronics are available.
Documentation & Downloads
Specifications
Key Specifications
| Dimension | 5 x 3 x 16 mm |
|---|---|
| Cable | PUR, 1 m |
| Housing material | PBT |
| Switching frequency | 7000 Hz |
| Ambient temperature | -25-85 °C |
| Approval/Conformity | CE, cULus, WEEE |
| Connection | M8x1-Male, 3-pin |
|---|---|
| Application | Optimized response path especially suited for short-stroke cylinders. |
| Switching output | PNP Normally open (NO) |
| Operating voltage Ub | 10-30 VDC |
| IP rating | IP67 |
