Balluff

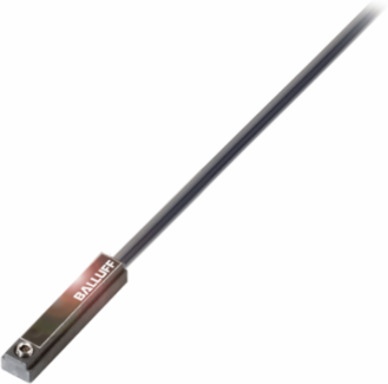

Balluff BMF 307K-R-PS-F-3-01 Magnetic field sensors for T-slot BMF 307K-R-PS-F-3-01

Magnetic field sensors for T-slot BMF 307K-R-PS-F-3-01
  • MPN: BMF 307K-R-PS-F-3-01
  • PPN: BAL-BMF00CM

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$137.41/ EA

Description

Our magnetic field sensors for T-slots detect the piston position without contact through the cylinder walls. Features: can be mounted directly into the slot, firm grip, can be mounted flush for space-critical applications, can be used for cylinders and grippers with strong or weak magnets, bright LEDs. Extremely short configurations as well as sensors with metal housings or magnetic field-sensitive electronics are available.

Specifications

Specifications

Dimension
29 x 6.2 x 4.4 mm
Housing material
LCP
Switching frequency
1000 Hz
Ambient temperature
-20-70 °C
Approval/Conformity
CE, cULus, WEEE
CablePVC, 1.00 m
Switching outputPNP Normally open (NO)
Operating voltage Ub10-30 VDC
IP ratingIP65
