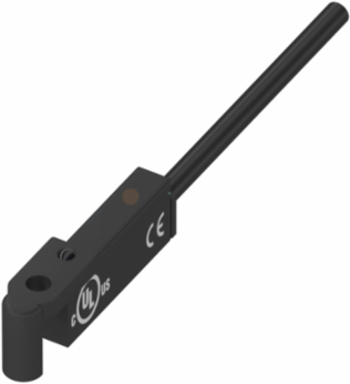

Balluff BMF 305K-R-US-L-3-05 Magnetic field sensors for tie rod cylinders BMF 305K-R-US-L-3-05
- MPN: BMF 305K-R-US-L-3-05
- PPN: BAL-BMF00CR
CAD
$39.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Our cylinder sensors for pull rod cylinders can be integrated into many applications. They are mounted with mounting brackets on cylinders with tie rods and DUO rails. The concept is suitable for the most common types of cylinders with any piston diameter.Features: contact-free detection of the piston position, tie rod Ø up to 17 mm, reliable switching behavior, wear-free,resistant to dirt, secure grip, easy installation.
Documentation & Downloads
Specifications
Key Specifications
| Dimension | 33.5 x 5 x 10.5 mm |
|---|---|
| Housing material | LCP |
| Switching frequency | 1000 Hz |
| Ambient temperature | -20-70 °C |
| Approval/Conformity | CE, WEEE |
| Cable | PVC, 5.00 m |
|---|---|
| Switching output | polarized Normally open (NO) |
| Operating voltage Ub | 6-240 VDC/6-240 VAC |
| IP rating | IP65 |
