Balluff

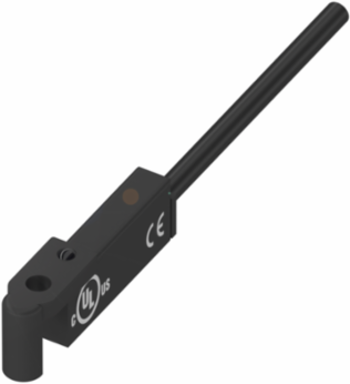

Balluff BMF 305K-R-PS-F-3-03 Magnetic Field Sensor with IP65 Rating, 3.00 m Cable, 10-30 VDC

Magnetic Field Sensor with IP65 Rating, 3.00 m Cable, 10-30 VDC
  • MPN: BMF 305K-R-PS-F-3-03
  • PPN: BAL-BMF0062

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$36.30/ EA

Description

Magnetic Field Sensor with IP65 Rating, 3.00 m Cable, 10-30 VDC

Specifications

Specifications

Dimension
33.5 x 5 x 10.5 mm
Application
larger actuators
Housing material
LCP
Switching frequency
1000 Hz
Ambient temperature
-20-70 °C
Approval/Conformity
CE, WEEE
CablePVC, 3.00 m
MountingMounting bracket BMF 305-HW*
Switching outputpolarized Normally open (NO)
Operating voltage Ub10-30 VDC
IP ratingIP65
