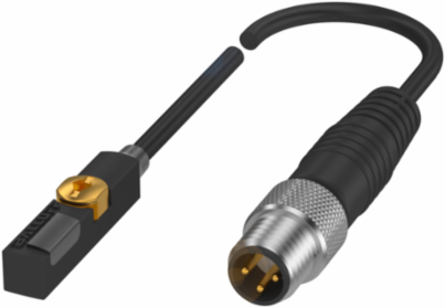

Balluff BMF 235K-PS-C-2A-SA2-S49-00,5 Magnetic field sensors for tie rod cylinders BMF 235K-PS-C-2A-SA2-S49-00,5
- MPN: BMF 235K-PS-C-2A-SA2-S49-00,5
- PPN: BAL-BMF00CF
CAD
$65.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Our cylinder sensors for pull rod cylinders can be integrated into many applications. They are mounted with mounting brackets on cylinders with tie rods and DUO rails. The concept is suitable for the most common types of cylinders with any piston diameter.Features: contact-free detection of the piston position, tie rod Ø up to 17 mm, reliable switching behavior, wear-free,resistant to dirt, secure grip, easy installation.
Documentation & Downloads
Specifications
Key Specifications
- Dimension
- 23.5 x 5 x 5.5 mm
- Cable
- PUR, 0.5 m
- Housing material
- PA 12
- Switching frequency
- 3000 Hz
- Ambient temperature
- -25-85 °C
- Approval/Conformity
- cULus, CE, WEEE
ConnectionM8x1-Male, 3-pin
ApplicationPneumatic cylinder with T-slot. For dimensions, see sketch in product view.
Switching outputPNP Normally open (NO)
Operating voltage Ub10-30 VDC
IP ratingIP67
