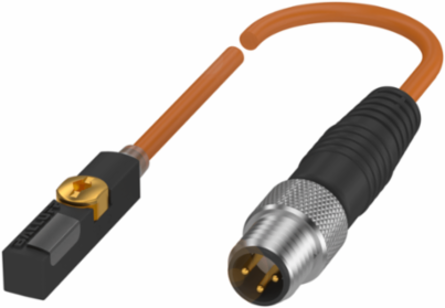

Balluff BMF 235K-PS-C-2A-SA5-S49-00,5 Magnetic field sensors for tie rod cylinders BMF 235K-PS-C-2A-SA5-S49-00,5
- MPN: BMF 235K-PS-C-2A-SA5-S49-00,5
- PPN: BAL-BMF00KF
CAD
$116.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Our cylinder sensors for pull rod cylinders can be integrated into many applications. They are mounted with mounting brackets on cylinders with tie rods and DUO rails. The concept is suitable for the most common types of cylinders with any piston diameter.Features: contact-free detection of the piston position, tie rod Ø up to 17 mm, reliable switching behavior, wear-free,resistant to dirt, secure grip, easy installation.
Documentation & Downloads
Specifications
Key Specifications
| Dimension | 23.5 x 5 x 5.5 mm |
|---|---|
| Cable | TPE, 0.50 m |
| Switching output | PNP Normally open (NO) |
| Operating voltage Ub | 10-30 VDC |
| IP rating | IP67 |
| Connection | M8x1-Male, 3-pin |
|---|---|
| Housing material | PA 12 |
| Switching frequency | 3000 Hz |
| Ambient temperature | -25-85 °C |
| Approval/Conformity | cULus, CE, WEEE |
