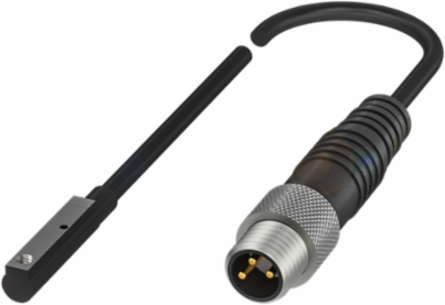

Balluff BMF 214K-PS-C-2A-SA2-S49-00,5 Magnetic field sensors for C-slot BMF 214K-PS-C-2A-SA2-S49-00,5
- MPN: BMF 214K-PS-C-2A-SA2-S49-00,5
- PPN: BAL-BMF00A3
CAD
$61.44
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Our magnetic cylinder sensors for C-slots distinguish themselves with their firm grip. Features: can be mounted flush – suitable for space-critical applications; can be installed from above – also fit where the slot ends are closed; contact-free detection of the piston position through cylinder walls; can be used for cylinders and grippers with strong or weak magnets. Extremely short configurations are available.
Documentation & Downloads
Specifications
Key Specifications
| Dimension | 16.8 x 2.9 x 4.5 mm |
|---|---|
| Cable | PUR, 0.5 m |
| Mounting | C-slot, SMC, Bimba, Schunk |
| Switching output | PNP Normally open (NO) |
| Operating voltage Ub | 10-30 VDC |
| IP rating | IP67 |
| Connection | M8x1-Male, 3-pin |
|---|---|
| Application | Optimized response path especially suited for short-stroke cylinders. |
| Housing material | PA 12 |
| Switching frequency | 7000 Hz |
| Ambient temperature | -25-85 °C |
| Approval/Conformity | CE, cULus, WEEE |
