Leviton

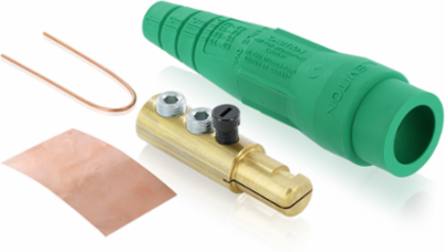

Leviton 18D22-UG Male Plug 2-2/0 AWG Double Set Screw 300 Amp Max

Male Plug 2-2/0 AWG Double Set Screw 300 Amp Max
  • MPN: 18D22-UG
  • UPC: 078477719046
  • PPN: LEV-18D22-UG

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$71.14/ EA

Description

18 Series Ball Nose Cam-Type Male Plug, Contact & Insulator, Detachable, #2 - 2/0 AWG, Double Set Screw Termination, 300 Amp Max, 600VAC/DC, Type 3R When Mated, Green

Features

  • Leviton’s Rhino-Hide Single Pole Cam-Type Connectors supply temporary electrical power for both indoor and outdoor applications. These devices are designed for easy assembly and disassembly, without special tools.
  • Single or double set screw termination
  • NEMA 3R rated for outdoor use when mated
  • UL: 1691, 508 – 35k A / 600V Short Circuit Current Rating
  • Color-coding provides fast and easy phase identification
  • Common applications: entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications

Specifications

Standards and Certifications

CSA Certified
File 152105
UL ListedFile E-13399; 1691, 508 – 35k A / 600V Short Circuit Current Rating

Material Specifications

Contacts
Brass
Strain ReliefCopper Wire

Mechanical Specifications

Cable Range
2-2/0 AWG
Gender
Male
Connection TypeDouble Set Screw

Specifications

Country of Origin
Mexico
RoHS CompliantFalse

Product Features

Contact Cat. No.
18D22-C
Insulator Cat. No.18SDM-22G

Electrical Specifications

Max. Amperage
300 Amp
Max. Voltage600 Volt
