Leviton

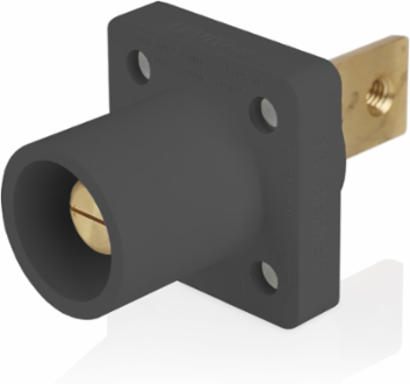

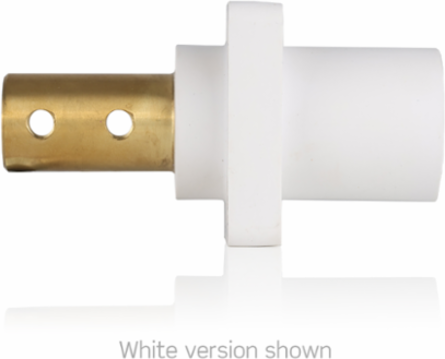

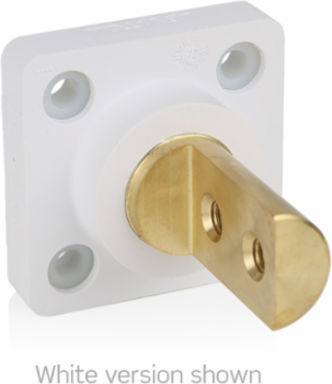

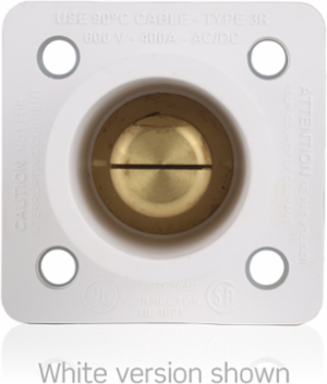

Leviton 16R33-E 16 Series Male Receptacle, 90-Degree, #2-4/0 AWG, Double Hole Bus Bar

16 Series Male Receptacle, 90-Degree, #2-4/0 AWG, Double Hole Bus Bar
16 Series Male Receptacle, 90-Degree, #2-4/0 AWG, Double Hole Bus Bar
16 Series Male Receptacle, 90-Degree, #2-4/0 AWG, Double Hole Bus Bar
16 Series Male Receptacle, 90-Degree, #2-4/0 AWG, Double Hole Bus Bar
  • MPN: 16R33-E
  • UPC: 078477025963
  • PPN: LEV-16R33-E

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$19.77/ EA

Description

16 Series Taper Nose Cam-Type Male Panel Mount Receptacle, 90-Degree, #2-4/0 AWG, Double Hole Bus Bar, 400 Amp Max, 600 VAC/DC, Black

Features

  • NEMA 3R rated for outdoor use when mated
  • Color-coding provides fast and easy phase identification
  • Common applications: entertainment, data centers, power distribution, backup power, construction sites, disaster recovery and other temporary power applications

Specifications

Material Specifications

Contact
Brass
InsulatorsSantoprene TPV

Mechanical Specifications

Cable Size Range
#2-4/0 AWG
Gender
Male
Connection TypeBus Bar-Double Hole
Termination TypeTaper-Nose

Specifications

Country of Origin
Mexico
RoHS CompliantFalse

Product Features

Color
Black
Series16 Series

Warranty

Warranty
2-Year Limited

Electrical Specifications

Max. Amperage
400A
Short Circuit Current Rating
35kA
Max. Voltage616 VAC/DC

Standards & Certifications

CSA
1691
UL
1691
NEMA RatingType 3R
