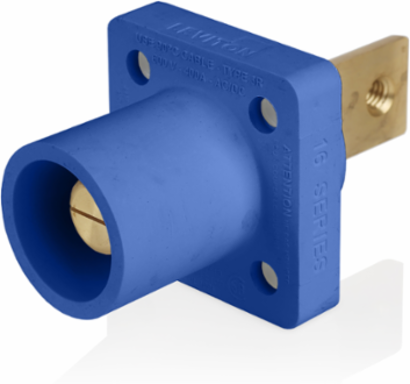

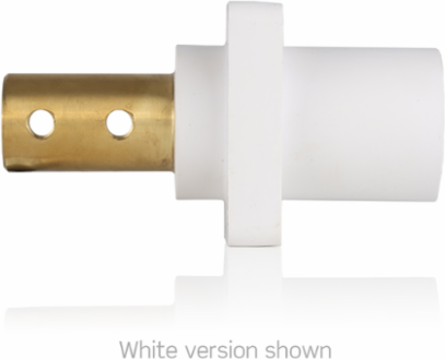

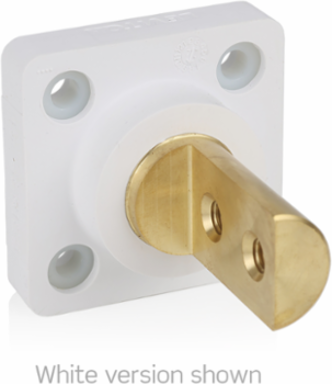

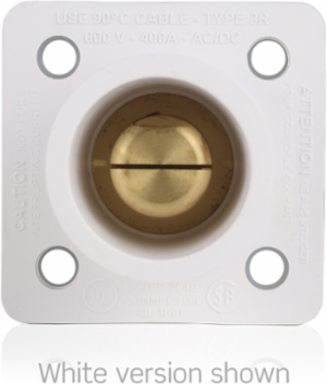

16 Series Male Receptacle, 90-Degree, #2-4/0 AWG, Double Hole Bus Bar

16 Series Male Receptacle, 90-Degree, #2-4/0 AWG, Double Hole Bus Bar - https://images.province-electric.com/LEV-16R33-B/male-receptacle-2-4-0-awg-medium-alt-zikp.webp

Documentation & Downloads

Leviton 16R33-B 16 Series Male Receptacle, 90-Degree, #2-4/0 AWG, Double Hole Bus Bar

MPN: 16R33-B
UPC: 078477026014
PPN: LEV-16R33-B

CAD

$20.75

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

16 Series Taper Nose Cam-Type Male Panel Mount Receptacle, 90-Degree, #2-4/0 AWG, Double Hole Bus Bar, 400 Amp Max, 600 VAC/DC, Blue

Features

NEMA 3R rated for outdoor use when mated
Color-coding provides fast and easy phase identification
Common applications: entertainment, data centers, power distribution, backup power, construction sites, disaster recovery and other temporary power applications

Documentation & Downloads

Specifications

Key Specifications

Country of Origin: Mexico

RoHS CompliantTrue

Material Specifications

Contact: Brass

InsulatorsSantoprene TPV

Mechanical Specifications

Cable Size Range: #2-4/0 AWG

Gender: Male

Connection TypeBus Bar-Double Hole

Termination TypeTaper-Nose

Product Features

Color: Blue

Series16 Series

Warranty

Warranty: 2-Year Limited

Electrical Specifications

Max. Amperage: 400A

Short Circuit Current Rating: 35kA

Max. Voltage619 VAC/DC

Standards & Certifications

CSA: 1691

UL: 1691

NEMA RatingType 3R
