Leviton 49MR2-XB 49 Series Male Receptacle, 313-777 MCM, Double Hole Bus Bar, Angled Clevis Pin
Leviton 49MR2-XB 49 Series Male Receptacle, 313-777 MCM, Double Hole Bus Bar, Angled Clevis Pin
- MPN: 49MR2-XB
- UPC: 078477386507
- PPN: LEV-49MR2-XB
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1435.16/ EA
Description

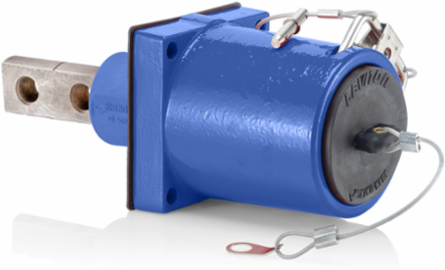

Rhino-Hide 49 Series Double Pole Male 45 Degree Receptacle (Color Coded Metal Housing, Contact, Captive Clevis Pin & Dust Cap), Double Hole Bus Bar, Industrial Grade, 313MCM-777MCM Cable, 1000 Volt, 1135 Amp Max - BLUE
Features
- Designed for the most extreme, demanding conditions, the 49 Series of high amperage devices includes male and female plugs, panel mount receptacles and accessories. They are an ideal solution for installations on both new and existing silicon-controlled rectifiers (SCRs) and generator stations as well as on generator stations and new oil or gas rigs. Cast aluminum powder-coated receptacle housing is color-coded for quick visual identification of circuit and phase connections TPV cap prevents contamination when receptacle is not in use Captive stainless steel clevis bracket accepts industry standard lockout; "X" versions feature 45° for easier access in smaller panels
Specifications
Standards and Certifications
- NEMA Rating
- Type 3R
ULRecognized Component
Material Specifications
- Bus Bar Contact
- Silver-Plated High Conductivity Alloy
- Clevis Pin
- Stainless Steel
- Housing Gasket
- Rubber
- Receptacle Housing
- Powder-Coated Cast Aluminum
Bus Bar InsulatorSantoprene TPV
Dust CapSantoprene TPV
Padlock BracketStainless Steel
Mechanical Specifications
- Gender
- Male
Specifications
- Country of Origin
- Please Contact Customer Service
RoHS CompliantFalse
Product Features
- Color
- Blue
Electrical Specifications
- Connector Termination
- Bus Bar-Double Hole
- Max. Voltage
- 1000 Volts AC/DC
Max. Amperage1135 Amp
