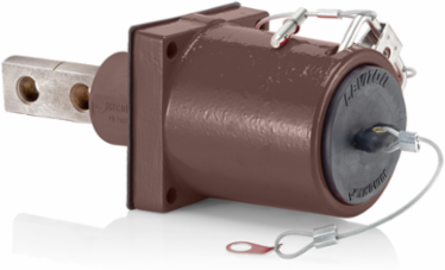

Leviton 49MR2-XH Double Pole Male Receptacle 313-777 MCM, 1135 Amp, 1000 Volt

Double Pole Male Receptacle 313-777 MCM, 1135 Amp, 1000 Volt
  • MPN: 49MR2-XH
  • UPC: 078477386590
  • PPN: LEV-49MR2-XH

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1366.82/ EA

Description

Rhino-Hide 49 Series Double Pole Male 45 Degree Receptacle (Color Coded Metal Housing, Contact, Captive Clevis Pin & Dust Cap), Double Hole Bus Bar, Industrial Grade, 313MCM-777MCM Cable, 1000 Volt, 1135 Amp Max - BROWN

Features

  • Designed for the most extreme, demanding conditions, the 49 Series of high amperage devices includes male and female plugs, panel mount receptacles and accessories. They are an ideal solution for installations on both new and existing silicon-controlled rectifiers (SCRs) and generator stations as well as on generator stations and new oil or gas rigs.
  • Cast aluminum powder-coated receptacle housing is color-coded for quick visual identification of circuit and phase connections
  • TPV cap prevents contamination when receptacle is not in use
  • Captive stainless steel clevis bracket accepts industry standard lockout; "X" versions feature 45° for easier access in smaller panels

Specifications

Standards and Certifications

NEMA Rating
Type 3R
ULRecognized Component

Material Specifications

Bus Bar Contact
Silver-Plated High Conductivity Alloy
Clevis Pin
Stainless Steel
Housing Gasket
Rubber
Receptacle Housing
Powder-Coated Cast Aluminum
Bus Bar InsulatorSantoprene TPV
Dust CapSantoprene TPV
Padlock BracketStainless Steel

Mechanical Specifications

Gender
Male

Specifications

Country of Origin
Please Contact Customer Service
RoHS CompliantFalse

Product Features

Color
Brown

Electrical Specifications

Connector Termination
Bus Bar-Double Hole
Max. Voltage
1000 Volt
Max. Amperage1135 Amp
