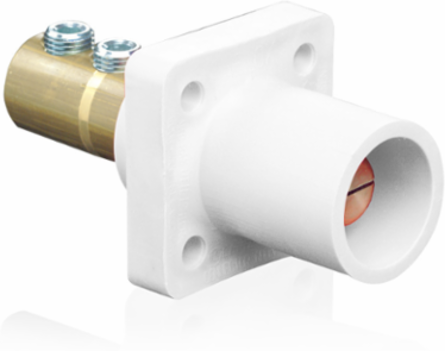

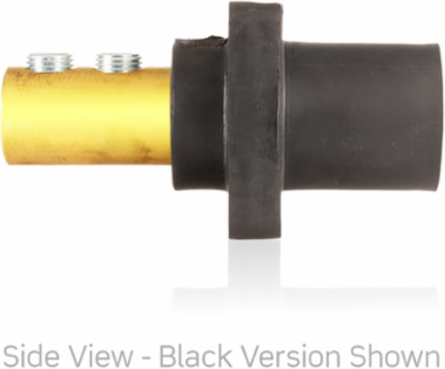

Leviton 16R21-UW Male Receptacle 90-Degree 2/0-4/0 AWG 400 Amp Max, Double Set Screw Termination
Leviton 16R21-UW Male Receptacle 90-Degree 2/0-4/0 AWG 400 Amp Max, Double Set Screw Termination
- MPN: 16R21-UW
- UPC: 078477716816
- PPN: LEV-16R21-UW
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$107.77/ EA
Description
16 Series Taper Nose Cam-Type Male Panel Mount Receptacle, 90-Degree, 2/0 - 4/0 AWG, Double Set Screw, 400 Amp Max, 600VAC/DC, White
Features
- Leviton’s Rhino-Hide Single Pole Cam-Type Connectors supply temporary electrical power for both indoor and outdoor applications. These devices are designed for easy assembly and disassembly, without special tools.
- Single or double set screw or crimp tube termination
- NEMA 3R rated for outdoor use when mated
- Designed with cylindrical profile to reduce snap
- UL: 1691, 508 – 35k A / 600V Short Circuit Current Rating
- Color-coding provides fast and easy phase identification
- Common applications: entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications
Specifications
Standards and Certifications
- CSA Standard
- 1691
- UL
- 1691, 508 – 35k A / 600V Short Circuit Current Rating
NEMA RatingType 3R
Material Specifications
- Contacts
- Brass
Strain ReliefCopper Wire
Mechanical Specifications
- Cable Range
- 2/0-4/0 AWG
- Gender
- Male
Connection TypeDouble Set Screw
Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Product Features
- Color
- White
Electrical Specifications
- Max. Amperage
- 400 Amp
Max. Voltage600 Volt
