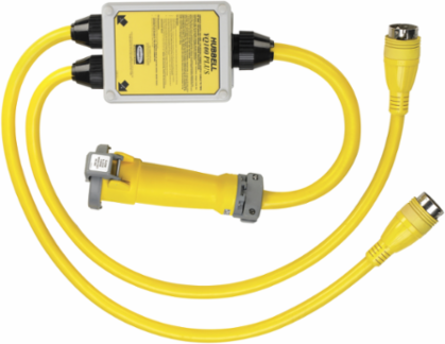

Hubbell Wiring Device-Kellems YQ100PLUS Marine "Y" Splitter Adapter, 100A, 125/250V, Insulated Body
- MPN: YQ100PLUS
- UPC: 783585093802
- PPN: HBL-YQ100PLUS
- UNSPSC: 39121710
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Marine Wiring "Y" Splitter for Power, Reverse Adapter, 100A 125/250V
Features
- Smaller, lighter-weight enclosure
- Sealing grommets keep moisture out
- Cord clamps prevent strain on terminals
- Reversed Service
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 23.500 in
- Application
- "Y" Adapter
- Insulation
- Insulated Body
- Operating Temperature
- Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
- Special Features
- Reversed Service
- Wattage
- 12500
- General Literature Asset 1 Display Text
- Hubbell Marine Full Line Catalog
- Class Code
- A12
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- YQ100
- Current Rating
- 50 A
- Receptacle Type
- Female- 50A 125/250V Twist-Lock®
- BOX SIZE
- 7.400x27.500x23.500 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585093802
- Case Weight
- 29.700 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 44.400 in
- Pallet Weight
- 356.400 lb.
- NAICS Code
- 335999B100
Current / Amperage Rating50 A
Amperage Rating50 A
ColorYellow
Number of PinsMale- 2) 50A 125V Twist-Lock®
ReceptacleFemale- 50A 125/250V Twist-Lock®
Voltage Rating125/250 VAC
Engineering Drawing 1 Display TextYQ100PLUS AutoCAD Drawing
Number Of PinsMale- 2) 50A 125V Twist-Lock®
Description - InvoiceMARINE REVERSE Y ADAP, 100A
Harmonization Code8537109170
MSDS FlagNo
Sub Class CodeA12A180
MaterialComposite
Base Unit of MeasureEA
Carton - Gross Weight per Pack29.700 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585093801
Pallet Length48.000 in
Pallet Width40.000 in
