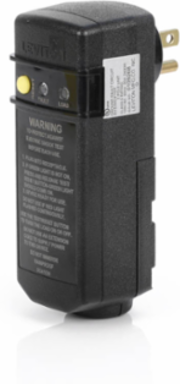

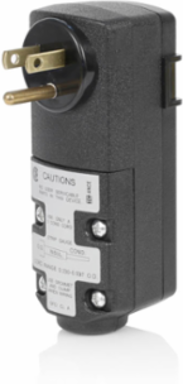

Leviton GSRA1 15 Amp GFCI Automatic Reset Plug, 120 VAC, Rainproof Design, Black
- MPN: GSRA1
- UPC: 078477682715
- PPN: LEV-GSRA1
CAD
$49.59
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15 Amp, 120 VAC, Self-Test Automatic Reset Right Angle GFCI Plug (5-15P), Rainproof Design, Black
Features
- Satisfies latest UL 943 self-test requirement
- Improve safety – protect critical personnel from electrical shocks
- Withstand outdoor conditions – rainproof and outdoor rated devices are OSHA compliant and feature weather-resistant SJTW cables
- Ideal for – vending machines, construction sites, RV parks, marinas, and spas/hot tubs
- Automatic reset – automatically restore power to connected equipment when plugged in or after power interruption, ideal for hard to access locations
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NEMA | WD-6 |
| UL 943 | Class A (GFCI) |
| CSA C22.2 | File LR-57811 |
|---|---|
| NOM | 057 |
| UL Listed | E-48380 |
Material Specifications
| Blades/Contacts | Brass |
|---|---|
| Color | Black |
| Body Material | Polycarbonate |
|---|
Mechanical Specifications
| Cord Range | .330 - .597 |
|---|---|
| Terminal Accom. | 18-12 AWG |
| Product ID | Ratings permanently marked on device |
|---|---|
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
Environmental Specifications
| Flammability | Rated V-2 per UL 94 |
|---|
| Operating Temperature | -35°C to 66°C |
|---|
Electrical Specifications
| Amperage | 15 A |
|---|---|
| Grounding | GFCI Ground Fault |
| Trip Level | 5mA plus or minus 1mA |
| Wire | 3 |
| Current Interrupting | 2 kA |
|---|---|
| Pole | 2 |
| Voltage | 120 VAC |
AC Horsepower Ratings
| At Rated Voltage | 3/4 Horsepower |
|---|
