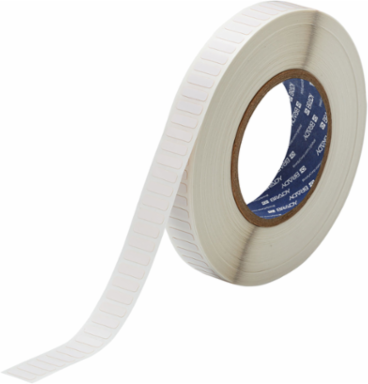

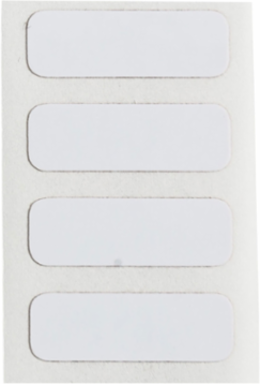

Brady THT-47-728-10 Matte Polyimide Labels, 0.2" H x 0.65" W, 10000 Labels, White
- MPN: THT-47-728-10
- UPC: 754473934477
- PPN: BRD-THT-47-728-10
- UNSPSC: 55121612
CAD
$939.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

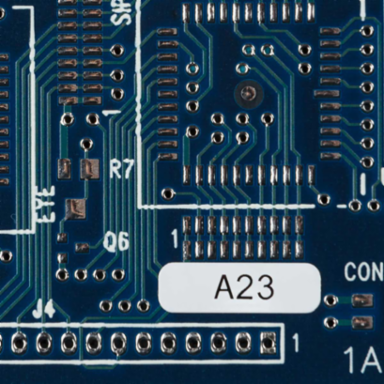

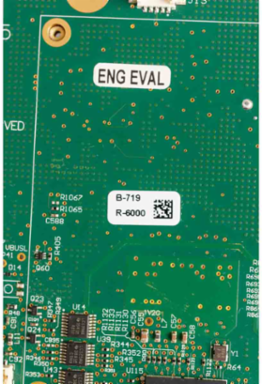

Permanent Polyimide (B-728) withstands wave solder environments and multiple harsh washes for printed circuit board and electronic component preprocess labeling.
Features
- Ultra-durable adhesive is designed for use with extreme wash protocol and cleaning chemicals, and is ideal for use in auto apply equipment
- Matte white polyimide material is thermal transfer printable
- UL Approved;Meets requirements of MIL-STD-202G, Method 215K
- Service temperature of -94 to 212° F (-70 to 100° C)
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Circuit Board Labeling
- Brand Name
- Brady®
- Color
- White
- Finish
- Matte
- Industry
- Aerospace; Automotive; Electronics; Manufacturing
- Primary Noun, Basic Function
- Label
- Printer and Label Applications
- Circuit Board
- Printer Compatibility (Print)
- BBP12; i7100; i5100
- Quantity per Row
- 1
- Ribbon Series
- R6000HF
- Suggested Ribbon Series
- R4700; R6000 Halogen Free
- Total Quantity
- 10000
- Adhesive (Y/N)
- Yes
- After Process
- Yes, this material will work with this application
- Label Properties
- Heat Resistant Labels; Permanent Adhesive Labels
- SAP B-Number
- B-728
- Dimensions
- 0.2 in H x 0.65 in W
- Dimensions 2
- 0.2 in H x 0.65 in W
- Height (mm/cm/m)
- 5.08 mm
- Maximum Service Temperature °C
- 300 °C
- Minimum Service Temperature °C
- -70 °C
- Sign Size-General
- 0.2 in x 0.65 in
- Thickness (in/ft/yd)
- 0.0044 in
- Vertical Repeat
- 0.3 in
- Web Width (mm/cm/m)
- 21.59 mm
- Width (mm/cm/m)
- 16.51 mm
Board ApplicationSMT - Top/Bottom; Through Hole - Bottom; Through Hole - Top
Bulk PartNot a Bulk Part
Compatible Surface TypesHigh Surface Energy
For Use with PrinterBBP®81 Label Printer; BRADY IP® Series Label Printer; BradyPrinter i5100; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Label/Media FormatRoll
Print TechnologyThermal Transfer
Printer CompatibilityBBP12; BBP11; BP1244; BP1344; BP2461; BP3481; BP6441; MVP200; MVP300; 300XPlusII; 360XPlusII; 600XPlusII; PR200Plus; PR300Plus; PR600Plus; IP300; IP600; i7100; i5100
Quantity per Roll10000
Recommended RibbonIP-R6006; R6006
ShapeRectangle
Total Qty per Pack10000 Label(s) / Roll
Trade NameUltraTemp®
Adhesive TypePermanent Acrylic
Brady Material NumberB-728
MaterialPolyimide
Core Diameter (mm/cm/m)76.20 mm
Dimensions (Metric)16.51 mm W x 5.08 mm H
Height (in/ft/yd)0.2 in
Label/Tape Size (in/ft/yd)0.2 in H x 0.65 in W
Maximum Service Temperature °F572 °F
Minimum Service Temperature °F-94 °F
Size - Width (mm)16.51 mm
Thickness (mm/cm/m)0.112 mm
Vertical Repeat (mm)7.62 mm
Width (in/ft/yd)0.65 in
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliant
- Yes
Contains CA PROP 65 SubstanceNo
EU RoHS CompliancePass 2011/65/EU(Pass 2015/863)
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
