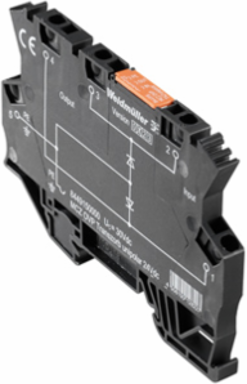

Weidmuller 8449150000 MCZ OVP TAZ DIODE 24VDC
- MPN: 8449150000
- PPN: WDM-8449150000
CAD
$65.01
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
MCZ SERIES, Surge protection for instrumentation and control, 13 A
Documentation & Downloads
Specifications
General Data
| Colour | black |
|---|---|
| Height with TS 35 | 63.5 mm |
| Rail | TS 35 |
| UL 94 flammability rating | V-0 |
| Design | Terminal |
|---|---|
| Protection degree | IP20 |
| Segment | Measurement - Monitoring - Setting |
| Version | Surge protection for measurement and control |
Approvals
| Approvals | CE, EAC |
|---|
| ROHS | Conform |
|---|
Insulation Coordination Acc. To En 50178
| Pollution severity | 2 |
|---|
| Surge voltage category | III |
|---|
Rated Data Iec / En
| Capacitance | 1 nF |
|---|---|
| Fuse | 10A |
| Operating current, I | 13 A |
| Protection level on output side Wire-PE 1kV/µs, typically | 55 V |
| Protection level on output side Wire-wire 1 kV/µs, typically | 55 V |
| Rated current I | 13 A |
| Rated voltage (DC), max. | 30 V |
| Voltage type | DC |
| Discharge current, max. (8/20 µs) | 112 A |
|---|---|
| Max. continuous voltage, Uc (AC) | 30 V |
| Operating voltage | 26 A |
| Protection level on output side Wire-PE 8/20 µs, typically | 65 V |
| Protection level on output side Wire-wire 8/20 µs, typically | 65 V |
| Rated voltage (DC) | 24 V |
| Response time | ≤ 100 ps |
| Volume resistance | 0.20 Ω |
Dimensions And Weights
| Width | 6 mm |
|---|---|
| Height | 91 mm |
| Depth | 63.5 mm |
| Net weight | 24.8 g |
| Width (inches) | 0.236 inch |
|---|---|
| Height (inches) | 3.583 inch |
| Depth (inches) | 2.5 inch |
Connection Data
| Cross-section | 1.5 mm² |
|---|---|
| Type of connection | Tension-clamp connection |
| Clamping range, rated connection | 1.5 mm² |
| Clamping range, max. | 1.5 mm² |
| Wire connection cross section AWG, max. | AWG 16 |
| Wire cross-section, solid, max. | 1.5 mm² |
| Wire connection cross section, finely stranded, max. | 1.5 mm² |
| Wire cross-section, finely stranded, max. (AWG) | AWG 16 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 1.5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max. | 1.5 mm² |
| Wire connection method | Tension-clamp connection |
|---|---|
| Stripping length, rated connection | 8 mm |
| Clamping range, min. | 0.5 mm² |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire cross-section, solid, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded, min. | 0.5 mm² |
| Wire cross-section, finely stranded, min. (AWG) | AWG 26 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min. | 0.5 mm² |
| Blade size | 0.6 x 3.5 mm |
Classifications
| ETIM 6.0 | EC000943 |
|---|---|
| eClass 9.0 | 27-13-08-07 |
| eClass 10.0 | 27-13-08-07 |
| ETIM 7.0 | EC000943 |
|---|---|
| eClass 9.1 | 27-13-08-07 |
| UNSPSC | 30-21-18-11 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature, max. | 60 °C |
|---|---|
| Storage temperature, max. | 85 °C |
| Operating temperature | -40 °C...60 °C |
| Operating temperature, min. | -40 °C |
|---|---|
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C...85 °C |
